Overview

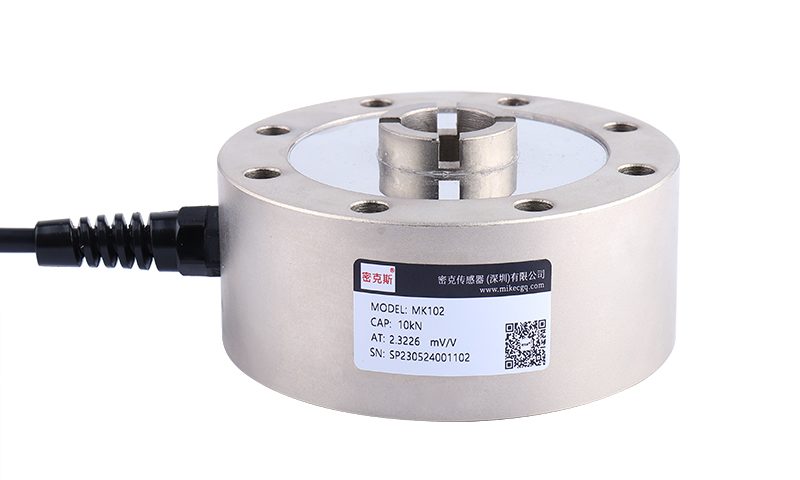

The MK102 cross-groove spoke-type force sensor pairs a low height with high stiffness, accurate measurement and firm resistance to eccentric loads. Its compact build drops into existing frames, and the rugged spoke construction keeps readings steady through repeated industrial duty.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.5-3.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Specified for belt, hopper and storage scales, tank weighing, materials testing machines and safety testing of labour-protection equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK102 5kN, 10kN, 20kN, 30kN, 50kN, 100kN, 200kN, 300kN MK102-T 50kN, 100kN, 200kN | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 1.5-3.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 387±20Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

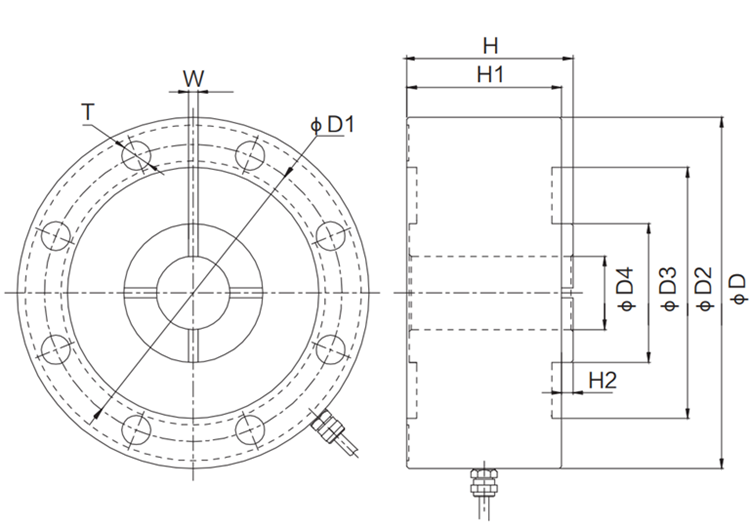

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | C | D1 | D2 | d | H | H1 | H2 | W | nxd1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK102 | 5~100 | 0.5~10 | 118 | 100 | 82 | 36 | 24 | 50 | 43 | 7 | 4×5.1 | 8xΦ9 |
| 200 | 20 | 160 | 135 | – | 62 | 40 | 53 | 45.5 | 7.5 | 10xΦ14 | ||
| 300 | 30 | 172 | 147 | 65 | 45 | 74.5 | 67 | 12xΦ14 | ||||
| MK102-T | 50~200 | 5~20 | 130 | 105 | 84 | 48 | 32 | 55 | 48 | 7 | 8xΦ14 |
Frequently Asked Questions
What are the typical applications of the MK102?
Specified for belt, hopper and storage scales, tank weighing, materials testing machines and safety testing of labour-protection equipment.
Which indicator, transmitter or system works with the MK102?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
