Overview

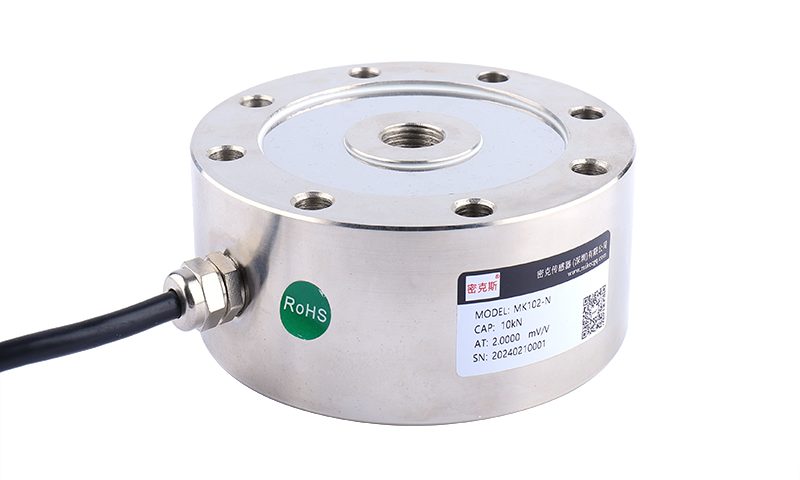

The MK102-N is an internally threaded spoke load cell in quality alloy steel with a nickel-plated anti-corrosion finish. Its threaded bore lets the cell be drawn directly into the load path, and the low profile, high accuracy and stable behaviour keep installation simple and rapid in tight assemblies.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Batching, belt, hopper, storage and tank scales, material testing machines, warehouse weighing systems and labour-safety testing equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10kN, 20kN, 50kN, 100kN | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 390±15Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

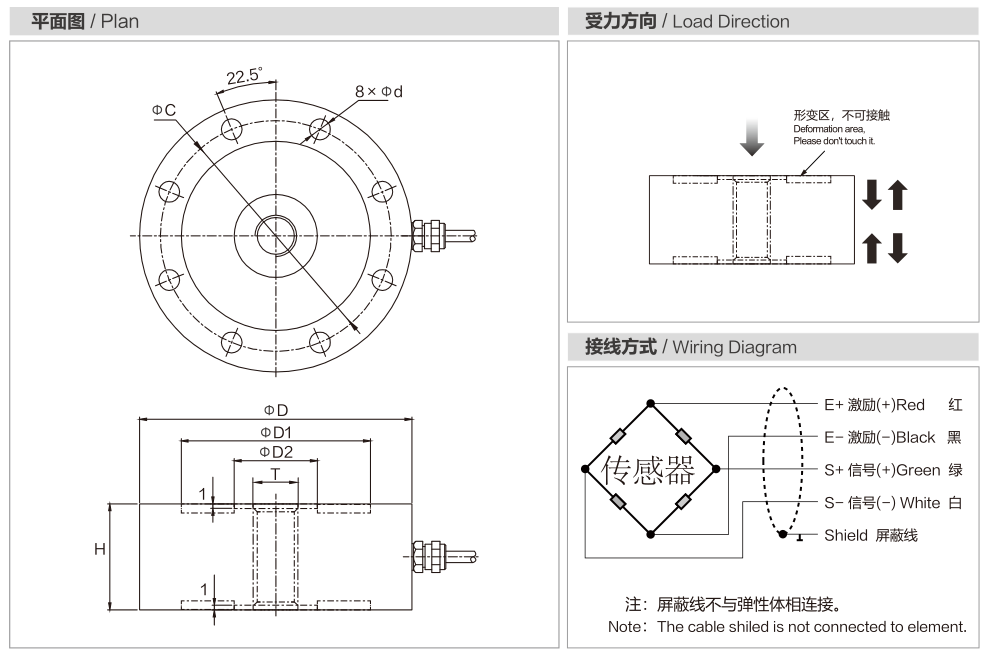

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | C | D1 | D2 | d | H | T |
|---|---|---|---|---|---|---|---|---|---|
| MK102-N | 10~50 | 1~5 | 118 | 100 | 82 | 36 | Φ9 | 46 | M18x1.5 |
| 200 | 20 | 182 | 154 | 126 | 76 | Φ14 | 60 | M39x2 |
Frequently Asked Questions
What are the typical applications of the MK102-N?
Batching, belt, hopper, storage and tank scales, material testing machines, warehouse weighing systems and labour-safety testing equipment.
Which indicator, transmitter or system works with the MK102-N?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
