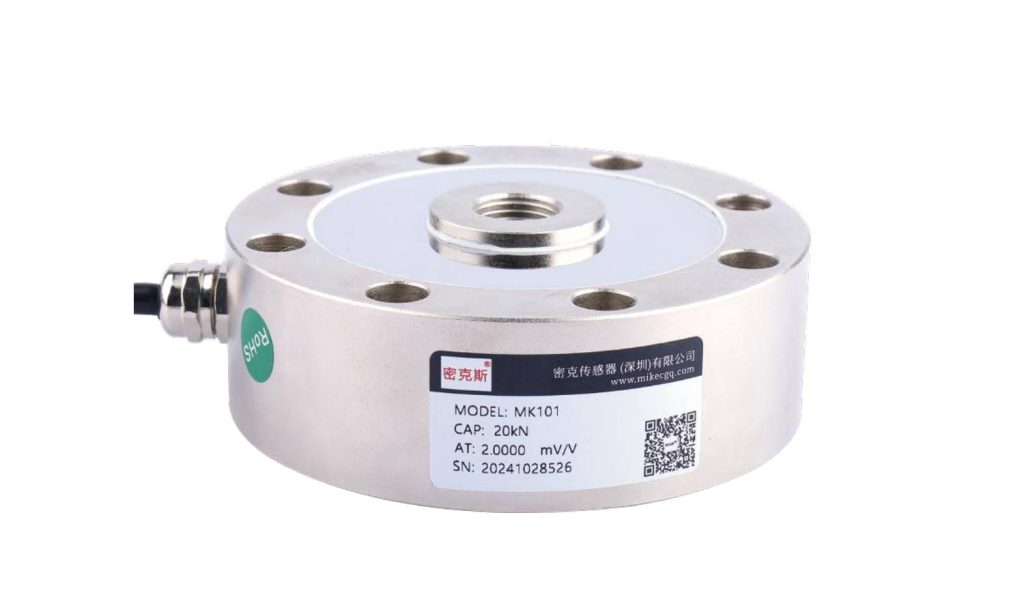

Overview
The MK101 is a spoke-type load cell designed specifically for testing machines and usable for both tension and compression. Working on the classic shear-stress measurement principle, it combines strong off-centre-load resistance, high accuracy and a compact, low-profile structure that fits easily into installations with limited headroom.
Key Features
- Tension and compression dual use
- Classic shear-stress principle
- Low profile for tight spaces
- High accuracy (≤0.05 / 0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.5-3.0mV/V, compatible with common indicators
Applications
Widely installed on material testing machines, truck scales, hopper scales and industrial process weighing and control systems.
| Technical Parameters | |||
|---|---|---|---|

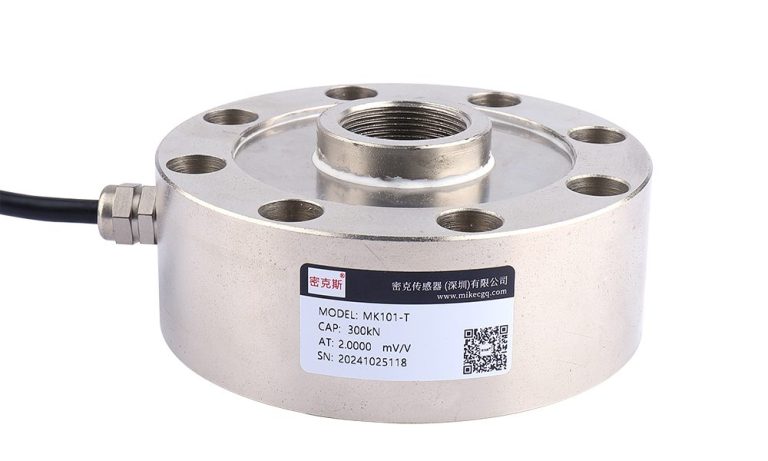

| Rated capacity | MK101 5kN, 10kN, 20kN, 30kN, 50kN, 75kN, 100kN, 200kN, 300kN, 500kN, 600kN, 1000kN, 2000kN, 3000kN, 5000kN MK101-T 300kN, 600kN, 1000kN, 2000kN | Comprehensive accuracy | ≤0.05 / 0.1%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 1.5-3.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05 / 0.1%F.S |
| Temperature Effect on Output | <0.05 / 0.1%F.S/10°C | Repeatability | ±0.05 / 0.1%F.S |
| Temperature Effect on Zero | <0.05 / 0.1%F.S/10°C | Hysteresis | ±0.05 / 0.1%F.S |
| Input impedance | 387±20Ω / 775±20Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±5Ω / 700±5Ω | Zero balance | ≤±1.5%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Limit overload | – | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

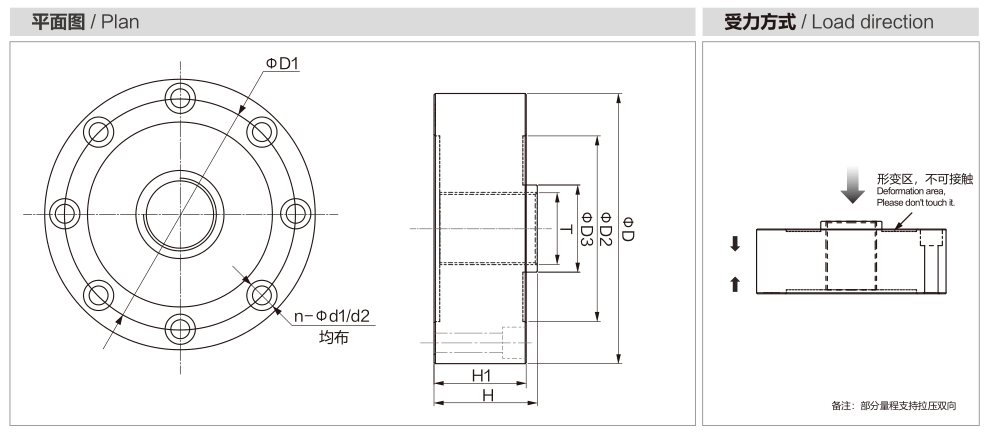

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | D3 | H | H1 | T | d1 | d2 | n |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK101 | 5~75 | 0.5~7.5 | 105 | 89 | 75 | 32 | 37 | 34 | M16x1.5 | 7.5 | 10.5 | 8 |
| 100~200 | 10~20 | 120.6 | 101.8 | 83 | 39 | 48 | 41 | M32x1.5 | 8.5 | 14 | ||
| 300 | 30 | 141 | 116.8 | 97 | 50.4 | 57.2 | 50.8 | M40x1.5 | 11 | 18 | ||
| 500 | 50 | 93 | 54.4 | |||||||||
| 600~1000 | 60~100 | 200 | 162 | 132 | 76 | 83 | 70 | M60x2 | 13 | 20 | 16 | |
| 1500~2000 | 150~200 | 250 | 210 | 170 | 110 | 100 | 90 | M80x3 | 17 | 28 | ||
| 3000 | 300 | 320 | 270 | 220 | 162 | 100 | M96x4 | |||||
| 5000 | 500 | 400 | 343 | 266 | 220 | 125 | 120 | M150x4 | 32.5 | 32.5 | ||
| MK101-T | 300 | 30 | 120.6 | 101.8 | 83 | 43 | 48 | 41 | M32x1.5 | 8.5 | 14 | 8 |
| 600 | 60 | 153 | 130 | 110 | 70 | 58 | 51 | M40x1.5 | 10.5 | 17 | ||
| 1000 | 100 | 200 | 162 | 132 | 76 | 83 | 70 | M64x3 | 13 | 20 | 16 | |
| 2000 | 200 | 295 | 245 | – | 136 | 105 | 100 | M90x3 | 22 | 22 | 8 |
Frequently Asked Questions
What are the typical applications of the MK101?
Widely installed on material testing machines, truck scales, hopper scales and industrial process weighing and control systems.
Which indicator, transmitter or system works with the MK101?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
