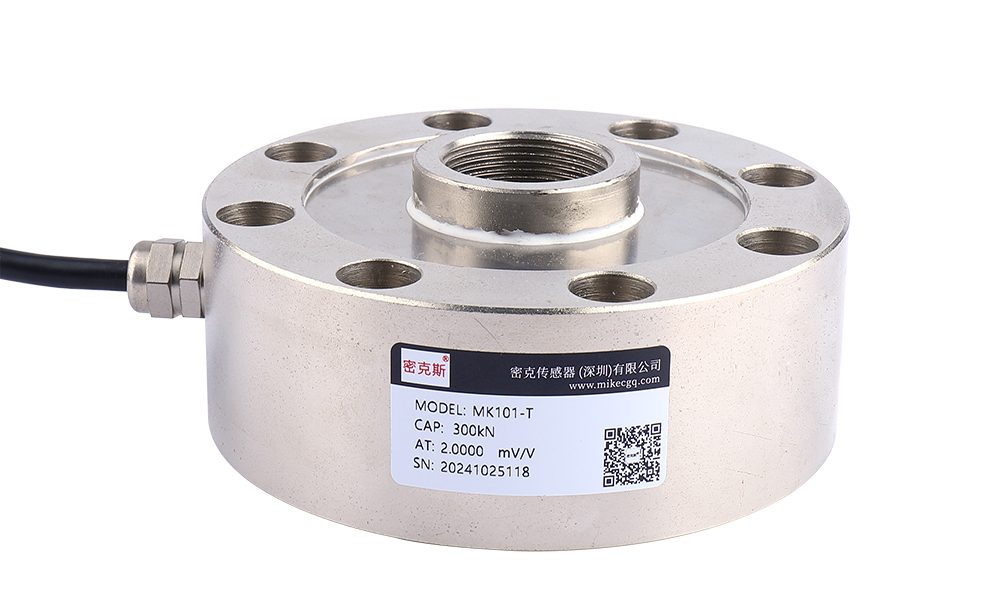

Overview
The MK101-T is a spoke-type load cell based on the proven shear-stress measurement principle, offering strong resistance to off-centre loads, high accuracy, and a compact, low-profile build. Its low height makes it a good fit where mounting space is limited, and stable output supports precise weighing and force control.
Key Features
- Shear-stress spoke measurement principle
- Low-profile build for tight installations
- Strong off-centre-load resistance
- High accuracy (≤0.05 / 0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0 ± 0.25 mV/V, compatible with common indicators
Applications
Used in testing machines, truck scales, hopper scales, and industrial process-control systems, and for structural-health monitoring of bridges and buildings.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK101 5kN 10kN 20kN 30kN 50kN 75kN 100kN 200kN 300kN 500kN 600kN 1000kN 2000kN 3000kN 5000kN MK101-T 300kN 600kN 1000kN 2000kN | Comprehensive accuracy | ≤0.05 / 0.1%F.S |
| Compensated temperature range | -10°C ~ 40°C | Output sensitivity | 2.0 ± 0.25 mV/V |
| Operating temperature range | -20°C ~ 60°C | Nonlinearity | ±0.05 / 0.1%F.S |
| Temperature Effect on Output | < 0.05 / 0.1%F.S/10°C | Hysteresis | ±0.05 / 0.1%F.S |
| Temperature Effect on Zero | < 0.05 / 0.1%F.S/10°C | Repeatability | ±0.05 / 0.1%F.S |
| Input impedance | 387 ± 20Ω / 775 ± 20Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 350 ± 5Ω / 700 ± 5Ω | Zero balance | ≤ ±1.5%F.S |
| Insulation resistance | ≥ 5000 MΩ | Recommended excitation voltage | 10V (DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

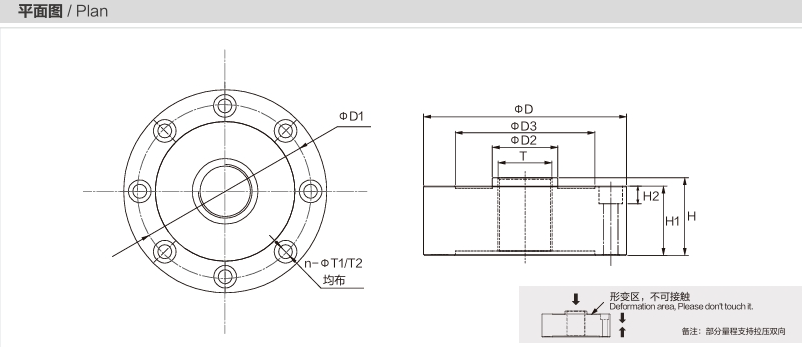

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | D3 | H | H1 | T | d1 | d2 | n |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK101 | 5~75 | 0.5~7.5 | 105 | 89 | 75 | 32 | 37 | 34 | M16x1.5 | 7.5 | 10.5 | 8 |
| 100~200 | 10~20 | 120.6 | 101.8 | 83 | 39 | 48 | 41 | M32x1.5 | 8.5 | 14 | ||
| 300 | 30 | 141 | 116.8 | 97 | 50.4 | 57.2 | 50.8 | M40x1.5 | 11 | 18 | ||
| 500 | 50 | 93 | 54.4 | |||||||||
| 600~1000 | 60~100 | 200 | 162 | 132 | 76 | 83 | 70 | M60x2 | 13 | 20 | 16 | |
| 1500~2000 | 150~200 | 250 | 210 | 170 | 110 | 100 | 90 | M80x3 | 17 | 28 | ||
| 3000 | 300 | 320 | 270 | 220 | 162 | 100 | M96x4 | |||||
| 5000 | 500 | 400 | 343 | 266 | 220 | 125 | 120 | M150x4 | 32.5 | 32.5 | ||
| MK101-T | 300 | 30 | 120.6 | 101.8 | 83 | 43 | 48 | 41 | M32x1.5 | 8.5 | 14 | 8 |
| 600 | 60 | 153 | 130 | 110 | 70 | 58 | 51 | M40x1.5 | 10.5 | 17 | ||
| 1000 | 100 | 200 | 162 | 132 | 76 | 83 | 70 | M64x3 | 13 | 20 | 16 | |
| 2000 | 200 | 295 | 245 | – | 136 | 105 | 100 | M90x3 | 22 | 22 | 8 |
Frequently Asked Questions
What are the typical applications of the MK101-T?
Used in testing machines, truck scales, hopper scales, and industrial process-control systems, and for structural-health monitoring of bridges and buildings.
Which indicator, transmitter or system works with the MK101-T?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
