Overview

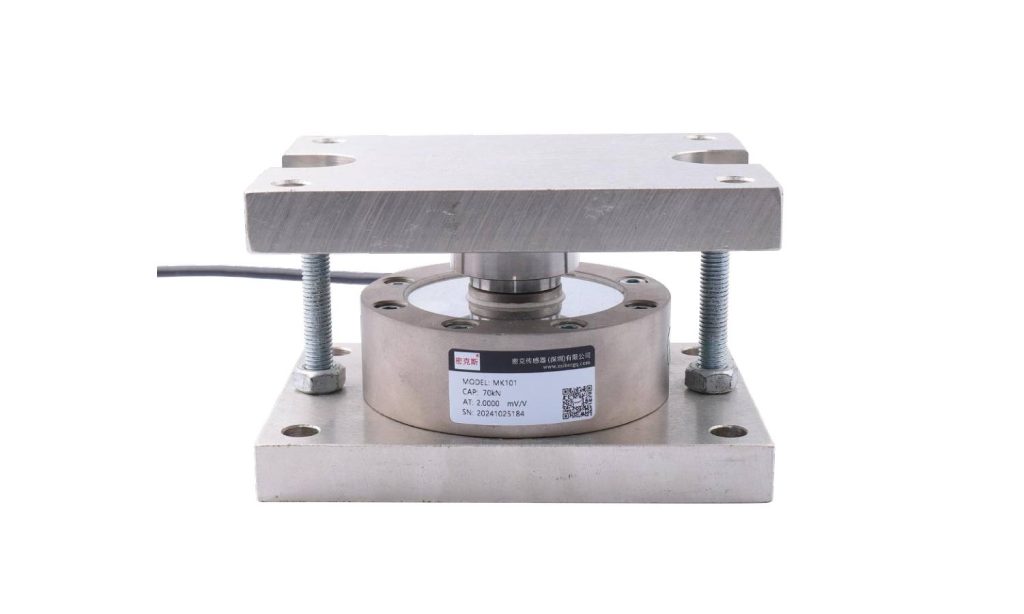

The MK101-M is a weighing module whose compact body resists off-centre and side loading, with a sealed, high-protection build that shrugs off damp, dust, vapour and corrosion. Its modular mount permits the small thermal expansion and contraction of the supported container, cancelling outside stress on the cell so linearity and long-term stability are preserved. Installation is simple and modules interchange readily, cutting later maintenance cost.
Key Features
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Fitted beneath tanks, silos and process vessels, and on platform scales in damp or corrosive areas where side thrust and maintenance access are concerns.
| Technical Parameters | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity (kN) | Capacity (t) | A | A1 | L | L1 | H | H1 | D |
| MK101–M | 5~70 | 0.5~7 | 115 | 90 | 160 | 100 | 135 | 20 | 11 |
| MK101–M | 100~250 | 10~25 | 160 | 125 | 200 | 145 | 160 | 25 | 13 |
| MK101–M | 300~500 | 30~50 | 180 | 135 | 240 | 175 | 200 | 30 | 17 |
| MK101–M | 600~1000 | 60~100 | 240 | 200 | 300 | 240 | 260 | 35 | 17 |
| MK101–M | 2000 | 200 | 240 | 280 | 400 | 319 | 350 | 47 | 21 |

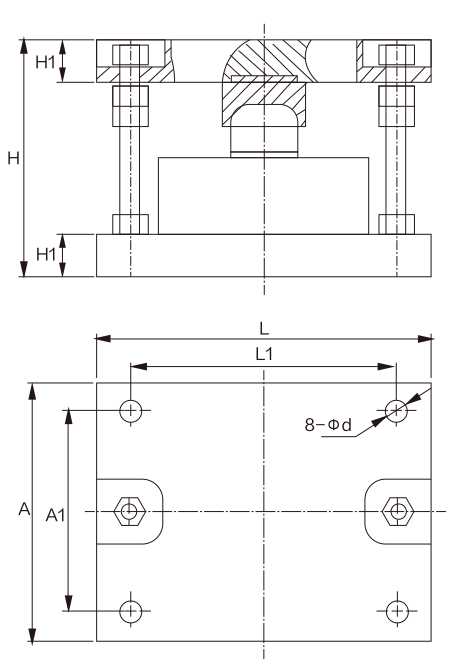

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | A | A1 | L | L1 | H | H1 | D |
|---|---|---|---|---|---|---|---|---|---|
| MK101–M | 5~70 | 0.5~7 | 115 | 90 | 160 | 100 | 135 | 20 | 11 |
| 100~250 | 10~25 | 160 | 125 | 200 | 145 | 160 | 25 | 13 | |
| 300~500 | 30~50 | 180 | 135 | 240 | 175 | 200 | 30 | 17 | |
| 600~1000 | 60~100 | 240 | 200 | 300 | 240 | 260 | 35 | ||
| 2000 | 200 | 280 | 400 | 319 | 350 | 47 | 21 |
Frequently Asked Questions
What are the typical applications of the MK101-M?
Fitted beneath tanks, silos and process vessels, and on platform scales in damp or corrosive areas where side thrust and maintenance access are concerns.
Which indicator, transmitter or system works with the MK101-M?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
