Overview

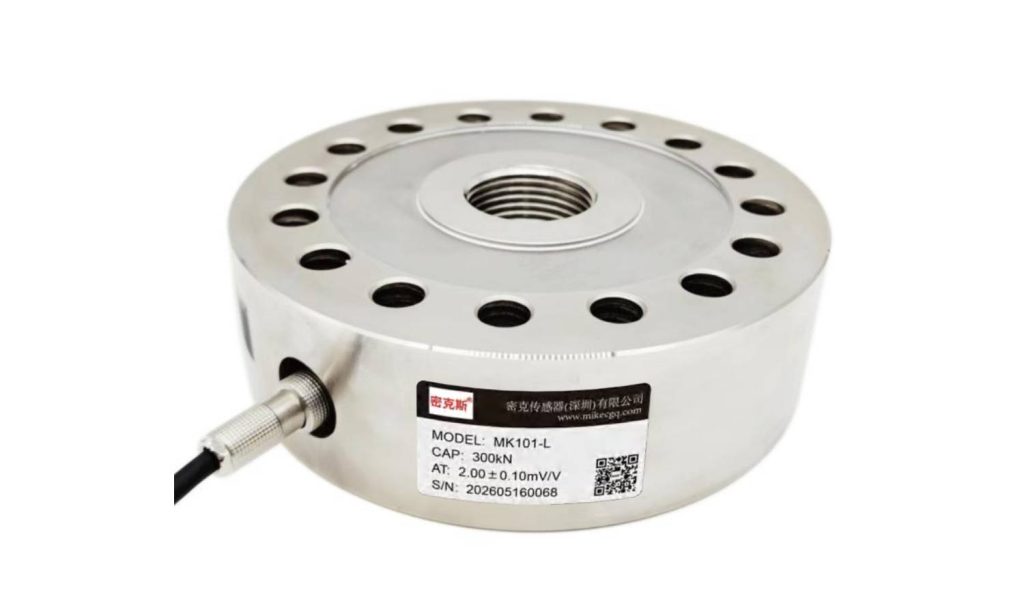

The MK101-L is an internally threaded spoke load cell that accommodates a wide range of accuracy requirements while serving general force-measurement duties. Its threaded mounting and spoke design make it convenient to install in fixtures and structures.
Key Features
- High accuracy (≤0.05 / 0.1%F.S) for precise measurement
- MK101L: Alloy Steel; MK101L-A: Aluminum-Alloy elastic element for durability and corrosion resistance
- Standard output 2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied to silos and hoppers, automated weighing systems, and testing machines for force measurement.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK101L 0.5kN, 1kN, 2kN, 5kN, 10kN, 20kN, 50kN, 100kN, 200kN, 300kN, 500kN, 600kN; 1000kN; 2000kN, 3000kN; 5000kN, 10000kN, 15000kN MK101L A 300N, 500N, 1kN, 2kN, 5kN, 10kN, 20kN | Comprehensive accuracy | ≤0.05 / 0.1%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | 0.05%F.S±0.1% |
| Temperature Effect on Output | <0.05%F.S/10°C | Repeatability | 0.05%F.S±0.1% |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | 0.05%F.S±0.1% |
| Input impedance | 387±20Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 5~15V(DC) |
| Material | MK101L: Alloy Steel; MK101L-A: Aluminum-Alloy | Safe overload | 120%F.S |
| Limit overload | ‑ | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

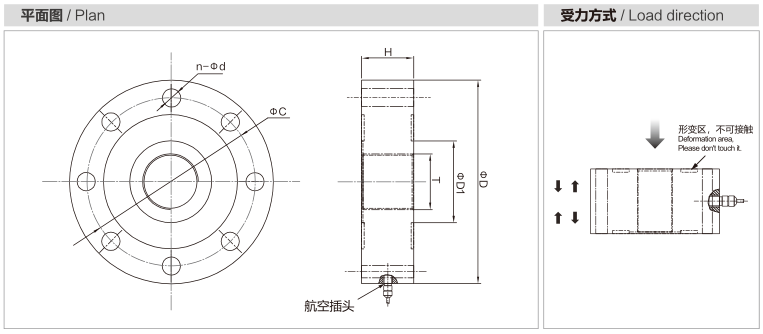

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | D1 | C | H | T | d | n |
|---|---|---|---|---|---|---|---|---|---|
| MK101L | 0.5~5 | 0.05~0.5 | 90 | 25 | 75 | 25 | M16x1.5 | Φ7 | 4 |
| 10 | 1 | 112 | 35 | 96 | 30 | M20x2 | Φ9 | 8 | |
| 20 | 2 | 125 | 44 | 105 | 42 | M24x2 | Φ11 | ||
| 50~100 | 5~10 | 150 | 48 | 122 | 45 | M30x2 | |||
| 200~300 | 20~30 | 180 | 70 | 142 | 53 | M42x3 | Φ13.5 | 16 | |
| 500~600 | 50~60 | 234 | 97 | 194 | 60 | M64x3 | Φ21.5 | ||
| 1000 | 100 | 320 | 162 | 270 | 100 | M96x4 | Φ26 | ||
| 2000~3000 | 200~300 | 360 | 200 | 310 | 126 | M120x4 | Φ32.5 | ||
| 5000~10000 | 500~1000 | 500 | 310 | 420 | 160 | M200x4 | Φ27 | 28 | |
| 15000 | 1500 | 800 | ‑ | 700 | 250 | M280x4 | Φ51 | 24 | |
| 25000 | 2500 | 720 | 466 | 626 | 247 | M320x4 | Φ34 | 32 | |
| 35000 | 3500 | ||||||||
| MK101L‑A | 0.3~20 | 0.03~2 | 90 | 25 | 75 | 25 | M16x1.5 | Φ7 | 4 |
Frequently Asked Questions
What are the typical applications of the MK101-L?
Applied to silos and hoppers, automated weighing systems, and testing machines for force measurement.
Which indicator, transmitter or system works with the MK101-L?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
