Overview

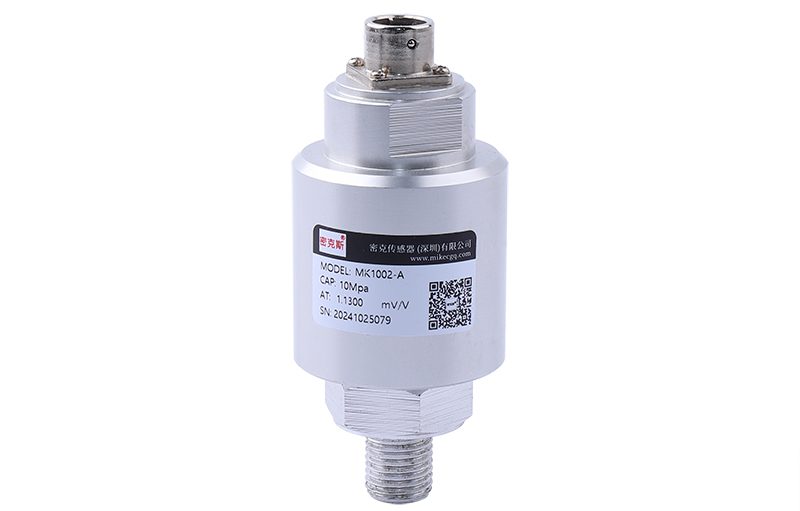

The MK1002-A is a pressure sensor machined from quality alloy steel for corrosive, demanding process service. It withstands acids and alkalis and combines high accuracy and good stability with a wide measurement span, making it suitable for continuous pressure monitoring in heavy industry.
Key Features
- Alloy-steel body resisting acid and alkali corrosion
- High accuracy with good stability
- Wide available pressure range
- High accuracy (0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.0–2.0mV/V, compatible with common indicators
Applications
Pressure measurement and control in the chemical, metallurgical and related process industries, where corrosive service conditions and stable readings are expected.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2Mpa 3Mpa 5Mpa 10Mpa 20Mpa 30Mpa 40Mpa 50Mpa 70Mpa 80Mpa 100Mpa | Comprehensive accuracy | 0.05%F.S |
| Operating temp. range | -20°C~60°C | Output sensitivity | 1.0–2.0mV/V |
| Temp. Effect on Output | ±0.05%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Temp. Effect on Zero | ±0.05%F.S/10°C | Zero balance | ≤±1%F.S |
| Input impedance | 385 Ω | Excitation voltage | – |
| Output impedance | 350 Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥2000M Ω | Material | Alloy steel |
| Cable size | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

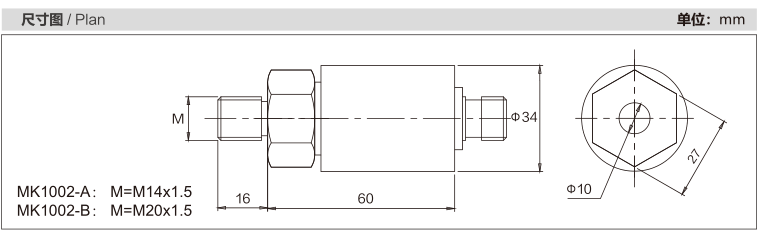

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1002-A?
Pressure measurement and control in the chemical, metallurgical and related process industries, where corrosive service conditions and stable readings are expected.
Which indicator, transmitter or system works with the MK1002-A?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
