Overview

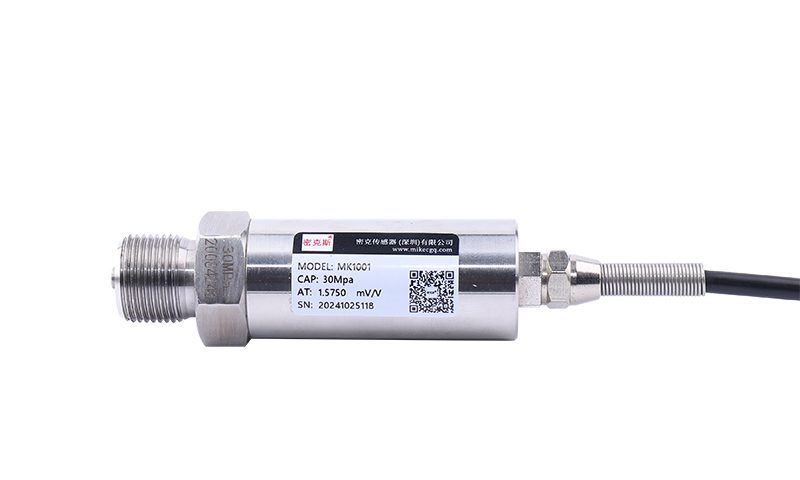

The MK1001 is a pressure sensor machined from specialty stainless steel, giving acid and alkali corrosion resistance, high accuracy, good stability and a broad measuring range. Its durable construction suits continuous duty in aggressive process environments.
Key Features
- Specialty stainless steel body
- Resists acid and alkali corrosion
- Wide pressure range, high stability
- High accuracy (0.1–0.5%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
Applications
Widely used for pressure measurement and control in the chemical, metallurgical and similar process industries.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5Mpa 10Mpa 20Mpa 50Mpa 100Mpa 200Mpa 300Mpa | Comprehensive accuracy | 0.1–0.5%F.S |
| Operating temp. range | -20°C~60°C | Output sensitivity | 1.0–1.5mV/V |
| Temp. Effect on Output | ±0.1–0.3%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Temp. Effect on Zero | ±0.1–0.3%F.S/10°C | Zero balance | ±1%F.S |
| Impedance | 350 Ω/2000 Ω | Excitation voltage | – |
| Insulation resistance | ≥5000M Ω | Safe overload | 120%F.S |
| Protection class | – | Material | Stainless steel |
| Cable size | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

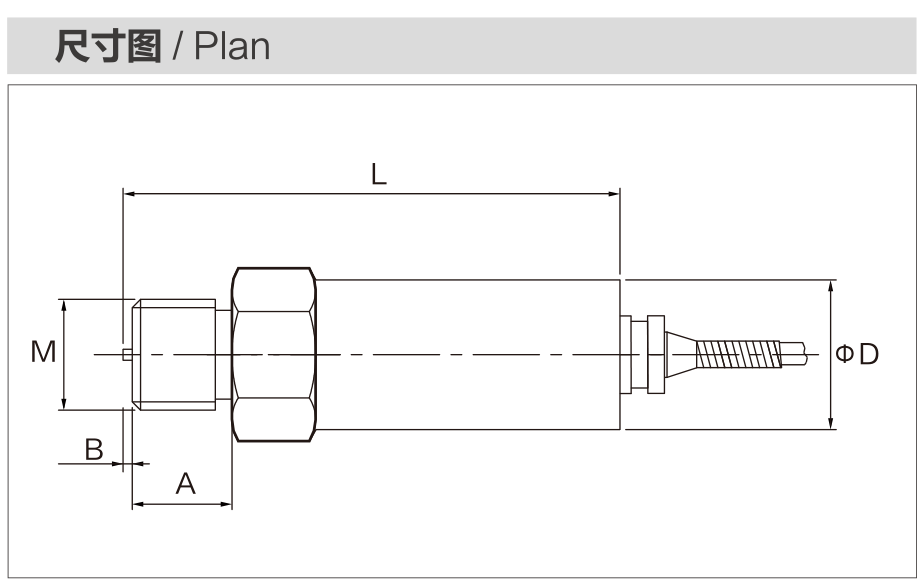

Dimension Drawing
Dimensions (mm)
| Model | Capacity (MPa) | A | B | M | L | L | ΦD |
|---|---|---|---|---|---|---|---|
| MK1001 | 50~80 | 18 | 2 | M20x1.5 | 90 | 60 | 27 |
| 100~150 | 19 | 95 | 65 | ||||
| 200~300 | 25 | M27x2.0 | 115 | 85 | 30 |
Frequently Asked Questions
What are the typical applications of the MK1001?
Widely used for pressure measurement and control in the chemical, metallurgical and similar process industries.
Which indicator, transmitter or system works with the MK1001?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
