Overview

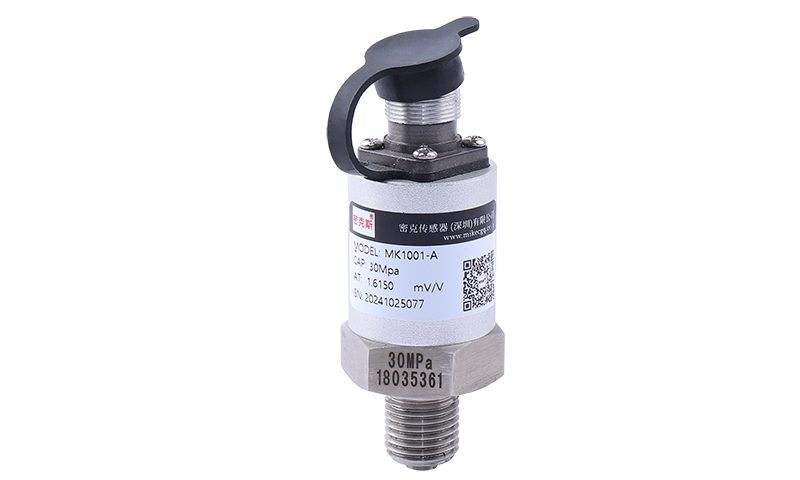

The MK1001-A pressure sensor is machined from specialty stainless steel selected for its resistance to acid and alkali attack, so the body holds up against aggressive process media. That corrosion-tolerant construction makes it a practical choice for continuous pressure measurement in chemically harsh services.
Key Features
- Specialty stainless-steel construction
- Resists acid and alkali corrosion
- High accuracy (0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.0–2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used for pressure measurement and control in the chemical and metallurgical process industries, wherever corrosive media are present in the line.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK1001-A 5Mpa 10Mpa 20Mpa 30Mpa MK1001-B 5Mpa 10Mpa 20Mpa 30Mpa | Comprehensive accuracy | 0.05%F.S |
| Operating temp. range | -20°C~60°C | Output sensitivity | 1.0–2.0mV/V |
| Temp. Effect on Output | ±0.05%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Temp. Effect on Zero | ±0.05%F.S/10°C | Zero balance | ±1%F.S |
| Input impedance | 380 Ω/1000 Ω | Excitation voltage | – |
| Output impedance | 350 Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥2000M Ω | Material | Alloy steel |
| Cable size | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

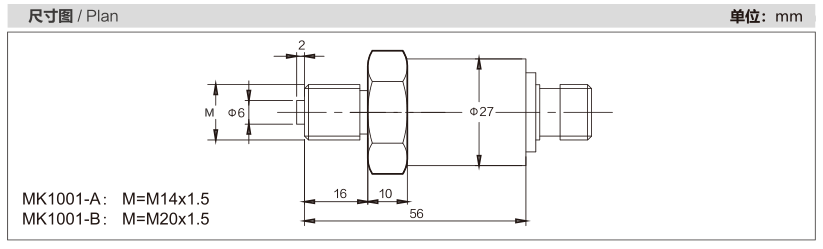

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1001-A?
Used for pressure measurement and control in the chemical and metallurgical process industries, wherever corrosive media are present in the line.
Which indicator, transmitter or system works with the MK1001-A?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
