Overview

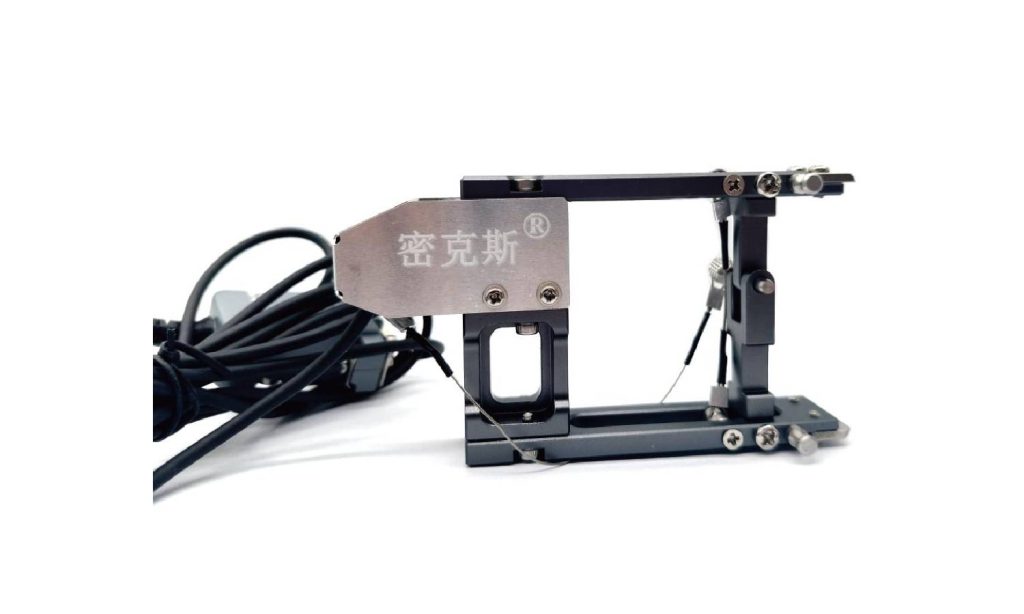

The MK-Y05005 is an electronic extensometer for tensile and compression testing. Its strain-gauge, full-bridge design offers broad compatibility with test instruments, and bidirectional mechanical end stops protect the device against over-travel damage. Single-bevel or V-beam knives and a spring-hook clamp allow fast mounting on different specimen cross-sections.
Key Features
- Bidirectional over-travel mechanical protection
- Single-bevel or V-beam knife edges
- Quick spring-hook clamping
- High-compatibility full-bridge design
- High accuracy (Class 0.5) for precise measurement
- Standard output Approx. 2mV/V, compatible with common indicators
Applications
Fitted to material testing rigs carrying out tensile and compression tests that require accurate specimen extension measurement.
| Technical Parameters | |||
|---|---|---|---|
| Model | MK-Y05005 | Gauge length | 50mm |
| Accuracy class | Class 0.5 | Error of gauge length | ±0.25mm |
| Measurement range | ±5mm | Relative error | 0.5% |
| Absolute error | ±1.5μm | Excitation voltage | 5–10VDC |
| Output signal | Approx. 2mV/V | Cable length | 2.5m |
| Weight | 86g | ||

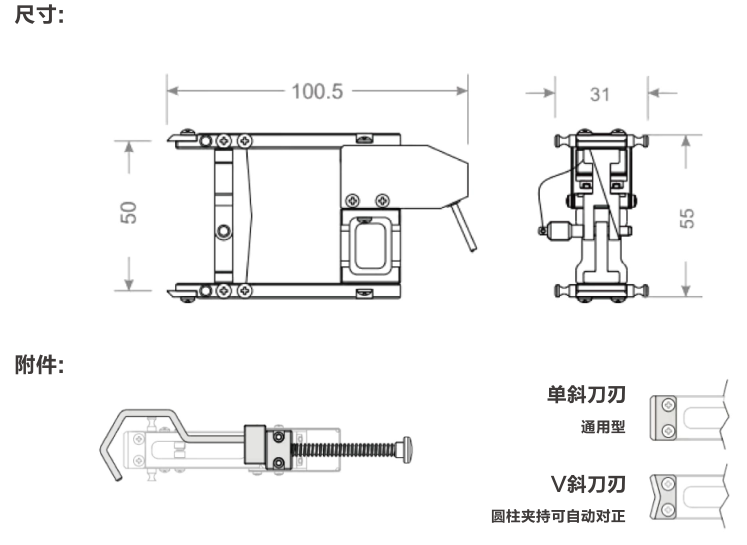

Dimension Drawing
Dimensions
| Model | MK-Y05005 | Gauge length | 50mm |
|---|---|---|---|
| Accuracy class | 0.5 | Error of gauge length | ±0.25mm |
| Measurement range | ±5mm | Relative error | 0.5% |
| Absolute error | ±1.5μm | Excitation voltage | 5–10VDC |
| Output signal | 2mV/V | Cable length | 2.5m |
| Weight | 86g |
Frequently Asked Questions
What are the typical applications of the MK-Y05005?
Fitted to material testing rigs carrying out tensile and compression tests that require accurate specimen extension measurement.
Which indicator, transmitter or system works with the MK-Y05005?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
