Overview

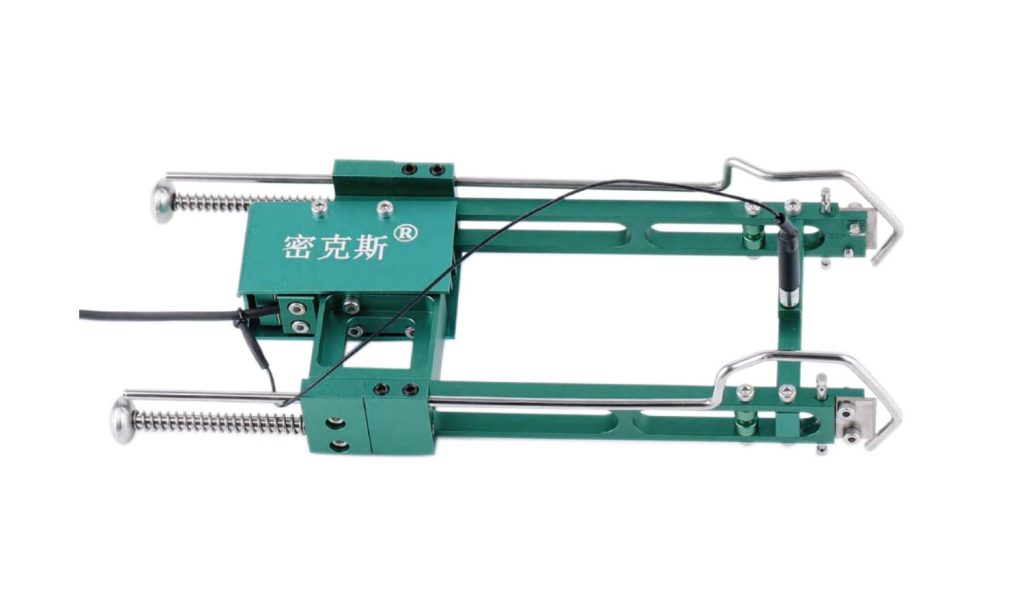

The MK-Y0 is a high-precision electronic extensometer that measures specimen deformation during mechanical testing. A double-bending structure grips the specimen firmly for rigid mounting, and because a sensor forms the deformation-measuring element with a separate data-acquisition stage, recorded strains are both accurate and repeatable. A built-in creep verification function checks sensor behaviour over time.
Key Features
- Double-bending structure for rigid mounting
- Sensor-based deformation measurement with data acquisition
- High accuracy and precision
- Built-in sensor creep verification
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Laboratory and production materials testing where elongation or deformation must be captured precisely, including strength and creep verification of sensors and specimens.
| Technical Parameters | |||||
|---|---|---|---|---|---|
| Model | MK-Y02505 | MK-Y05010 | MK-Y05025 | MK-Y010010 | MK-Y010025 |
| Calibration Distance | 25mm | 50mm | 50mm | 100mm | 100mm |
| Rated Deformation | 5mm | 10mm | 25mm | 10mm | 25mm |
| Accuracy Class | 0.3 / 0.5 / 1.0 | 0.3 / 0.5 / 1.0 | 0.3 / 0.5 / 1.0 | 0.3 / 0.5 / 1.0 | 0.3 / 0.5 / 1.0 |
| Error of Indication | 0.3% / 0.5% / 1.0% | 0.3% / 0.5% / 1.0% | 0.3% / 0.5% / 1.0% | 0.3% / 0.5% / 1.0% | 0.3% / 0.5% / 1.0% |
| Sensitivity | 1–2mV/V | 1.5–2.5mV/V | 1–2mV/V | 1.5–2.5mV/V | 1–2mV/V |
| Deformation repeatability | 0.3%/0.5%/1% | 0.3%/0.5%/1% | 0.3%/0.5%/1% | 0.3%/0.5%/1% | 0.3%/0.5%/1% |
| Coaxiality | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
| Maximum Deformation | 25mm | 50mm | 50mm | 100mm | 100mm |
Dimensions
| Model | MK-Y02505 | MK-Y05010 | MK-Y05025 | MK-Y010010 | MK-Y010025 |
|---|---|---|---|---|---|
| Calibration Distance | 25mm | 50mm | 50mm | 100mm | 100mm |
| Rated Deformation | 5mm | 10mm | 25mm | 10mm | 25mm |
| Accuracy Class | 0.3 / 0.5 / 1.0 | 0.3 / 0.5 / 1.0 | 0.3 / 0.5 / 1.0 | 0.3 / 0.5 / 1.0 | 0.3 / 0.5 / 1.0 |
| Error of Indication | 0.3% / 0.5% / 1.0% | 0.3% / 0.5% / 1.0% | 0.3% / 0.5% / 1.0% | 0.3% / 0.5% / 1.0% | 0.3% / 0.5% / 1.0% |
| Sensitivity | 1–2mV/V | 1.5–2.5mV/V | 1–2mV/V | 1.5–2.5mV/V | 1–2mV/V |
| Deformation repeatability | 0.3%/0.5%/1% | 0.3%/0.5%/1% | 0.3%/0.5%/1% | 0.3%/0.5%/1% | 0.3%/0.5%/1% |
| Coaxiality | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
| Maximum Deformation | 25mm | 50mm | 50mm | 100mm | 100mm |
Frequently Asked Questions
What are the typical applications of the MK-Y0?
Laboratory and production materials testing where elongation or deformation must be captured precisely, including strength and creep verification of sensors and specimens.
Which indicator, transmitter or system works with the MK-Y0?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
