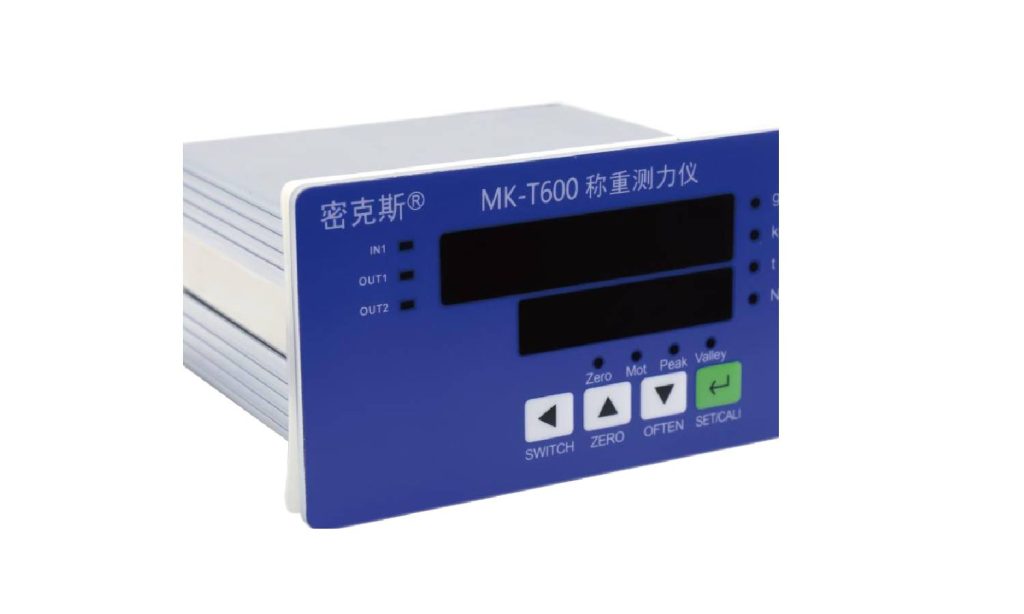

Overview
The MK-T600 is a digital weighing and force-measuring instrument that converts physical loads such as tension and compression into stable electrical signals. Its rugged, environment-tolerant build resolves small force changes with high repeatability, while a clear digital display and multiple communication interfaces ease integration into automated control systems.
Key Features
- High accuracy (1/30000) for precise measurement
- Standard output 5VDC ±2%,100mA, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to in-line force and weight measurement within automated production, process-control, and laboratory test setups that need a rugged digital readout.
| Technical Parameters | |||
|---|---|---|---|
| Operating voltage | DC12~30V | Signal input range | 0.1~6mV/V |
| Excitation voltage output | 5VDC ±2%,100mA | A/D conversion resolution | 24bit (binary) |
| Interface | RS485, can add analog output (0~10V, 0~20mA, 4~20mA), dual-output | Protocol | Modbus RTU / ACSII / FREE protocol |
| Transmission speed | 1200/2400/4800/9600/19200/38400/57600/115200 | Switch I/O signal | 2-point transistor output (Max: 1A), 1-point input |
| Number of Load cells | Up to 6 pcs load cells 350Ω | Operating temperature | -30°C~+60°C |
| A/D conversion rate | 6.25/12.5/25/50/100/200/400/800/1600/3200S | Display accuracy | 1/30000 |
| A/D performance | 2 rows of 6-digit red LED display | Power consumption | About 2.28W |

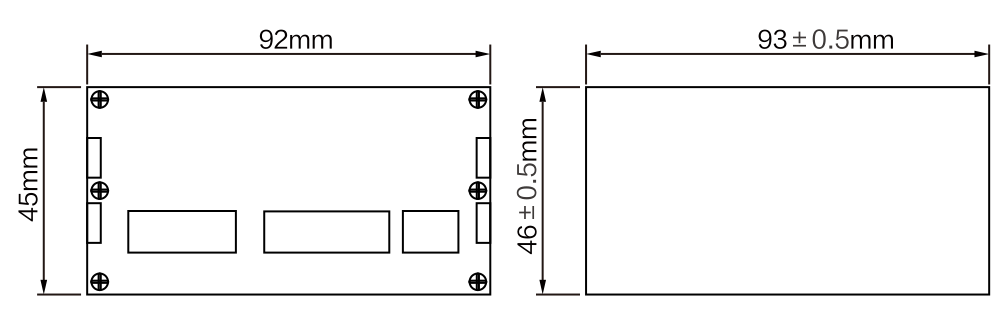

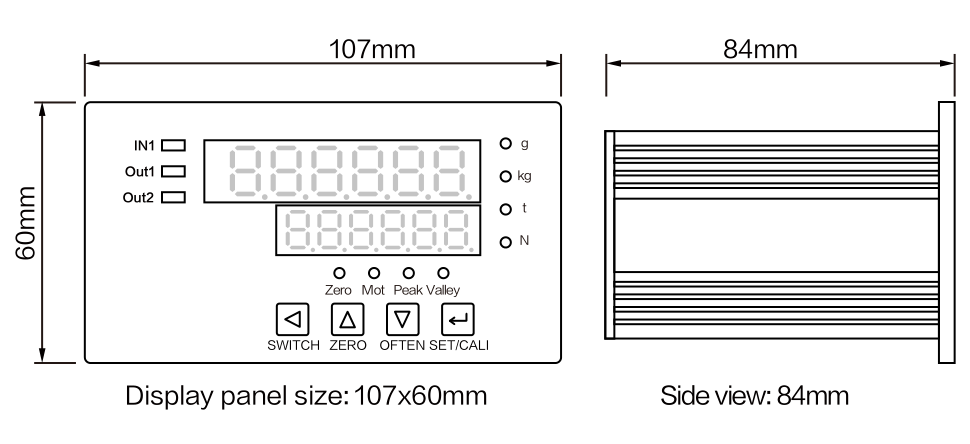

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK-T600?
Suited to in-line force and weight measurement within automated production, process-control, and laboratory test setups that need a rugged digital readout.
Which indicator, transmitter or system works with the MK-T600?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
