Overview

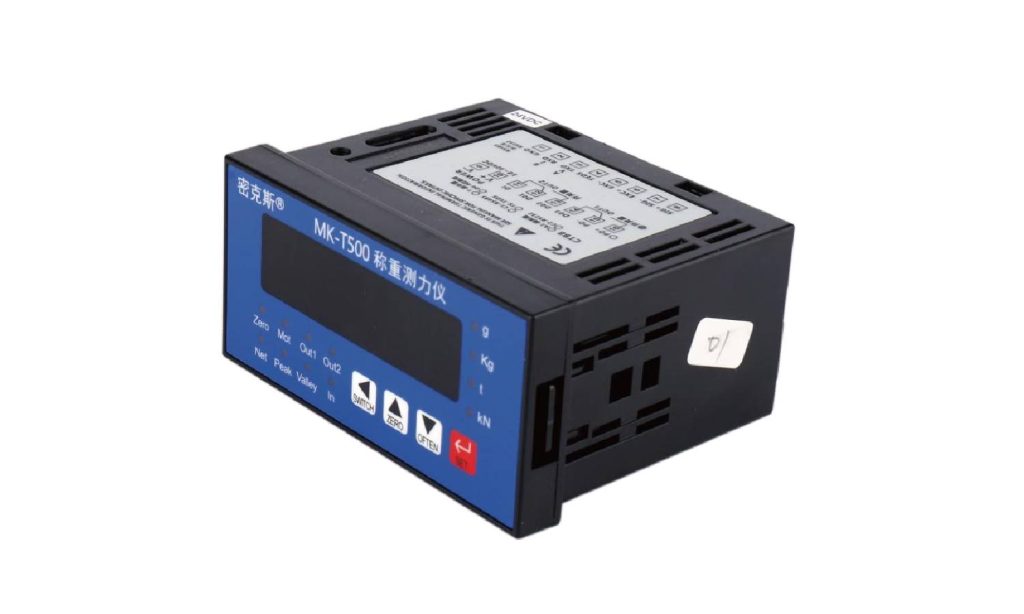

The MK-T500 is a compact weighing and force-measurement indicator with a clear digital display. It offers high accuracy and stability together with convenient operation and a rich feature set for everyday force measurement.
Key Features
- High accuracy (0.01%F.S.) for precise measurement
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 5VDC, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied in industrial force-measurement and testing setups where a small, easy-to-read indicator is required.
| Technical Parameters | |||
|---|---|---|---|
| Operating voltage | DC12~30V | 1-channel signal input range | 0~39mV |
| Excitation voltage output | 5VDC | Maximum sampling frequency | 1000Hz |
| Zero drift | <0.02μV/°C | Gain drift | ±5PPM/°C |
| Non-Linearity | 0.002%F.S. | Accuracy | 0.01%F.S. |
| Switch I/O signal | 2-point relay output, 250VAC/3A resistive load; 3-point transistor output, 24V/1A load capacity, 1-channel input | Communication interface | RS232 / RS485 |
| Communication Interface protocol | RS232, RS485: supports Modbus RTU / FREE protocol | Analog signal output | 4~20mA; 0~5V; 0~10V; resolution 1/3000 (optional) |
| A/D performance | 24-bit, Delta-Sigma method | Sampling and output rates | 10, 40, 640, 1280 times/second |
| Operating temperature | -30°C~+60°C | Relative Humidity | Operating: 35~85%RH; Storage: 35~85%RH |
| Protection class | IP65 | Withstanding voltage | 1 minute at 2000VAC 50/60Hz |
| Dimensions (L x W x T) | 96x71x48mm | ||

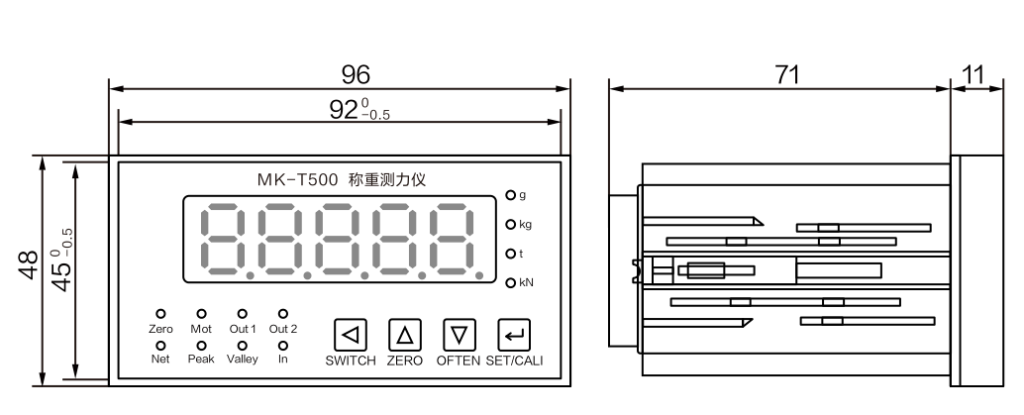

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK-T500?
Applied in industrial force-measurement and testing setups where a small, easy-to-read indicator is required.
Which indicator, transmitter or system works with the MK-T500?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
