Overview

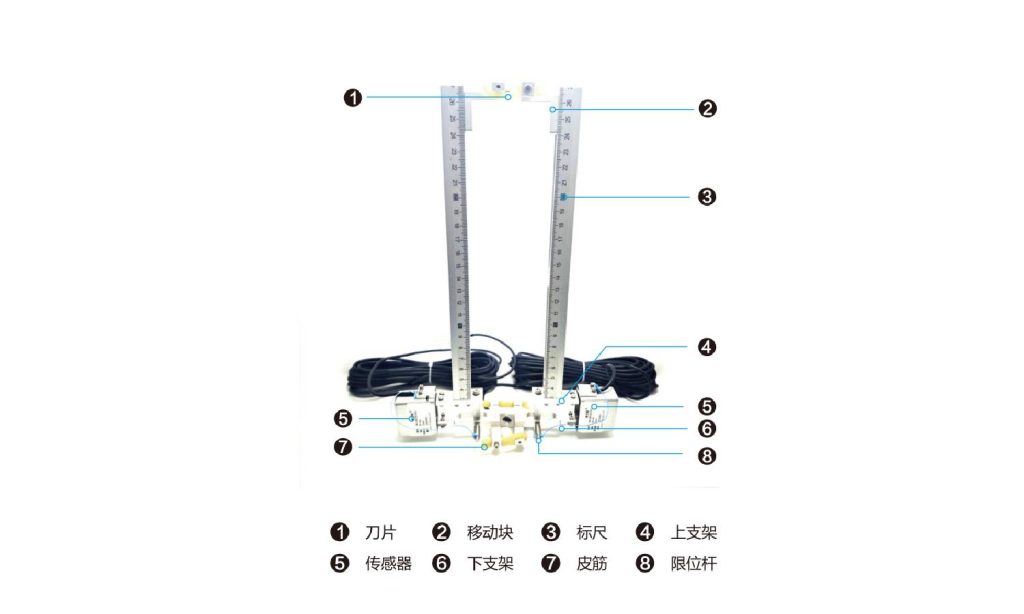

The MK-R80 is a dual electronic extensometer based on resistance strain gauges for material testing. As it elongates with the specimen, the elastic element deforms and shifts the bonded gauge resistance, and a Wheatstone bridge converts the change into a clean mV output that tracks strain precisely.
Key Features
- Resistance strain-gauge, Wheatstone-bridge design
- Dual extensometer for precise strain capture
- Direct mV output proportional to elongation
- High accuracy (Class 0.5) for precise measurement
- Compact design for straightforward integration
Applications
Mounted on tensile and universal testing machines to measure specimen elongation and strain during material strength testing.
| Technical Parameters | |||
|---|---|---|---|
| Model | MK-R80/260-005 | Gauge length | 80-260mm adjustable |
| Accuracy class | Class 0.5 | Signal style | mV analog signal |
| Bridge impedance | 350Ω | Signal size | <1.5mV/V |
| Supply bridge voltage | 3–12V | Connection methods | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |
Dimensions
| Model | MK-R80/260-005 |
|---|---|
| Gauge length | 80 260mm |
| Accuracy class | 0.5 |
| Signal style | mV |
| Bridge impedance | 350 |
| Signal size | <1.5mV/V |
| Supply bridge voltage | 3–12V |
| Connect methods | Black |
Frequently Asked Questions
What are the typical applications of the MK-R80?
Mounted on tensile and universal testing machines to measure specimen elongation and strain during material strength testing.
Which indicator, transmitter or system works with the MK-R80?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
