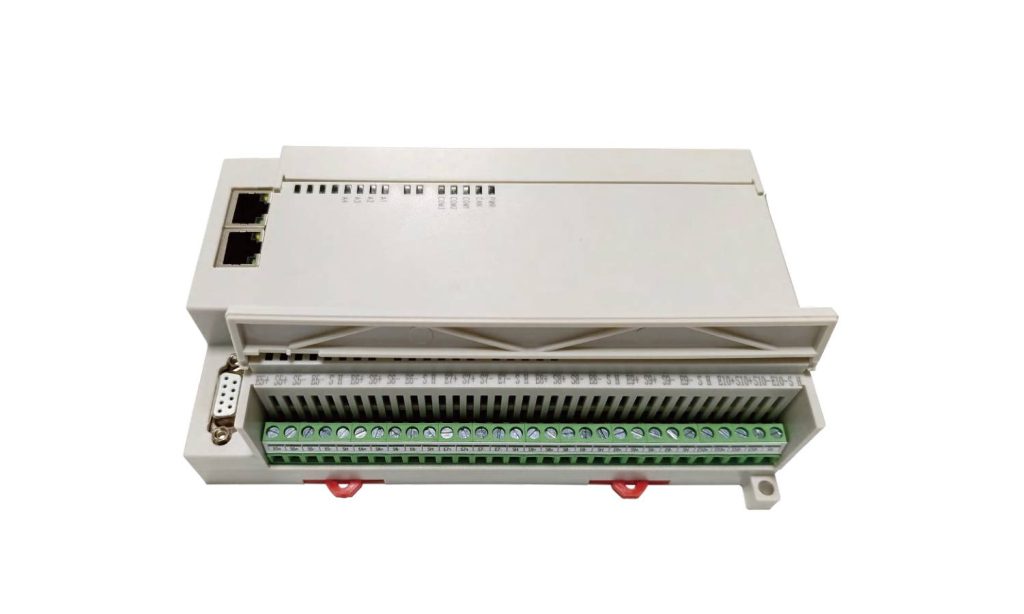

Overview
The MK-DWT810-EN10 is a multi-channel weight acquisition module that reads several load cells in parallel. Each channel is fed by its own precision bridge supply, so channels stay accurate and free of mutual interference and operation remains stable and reliable. Serial address and baud rate are set on DIP switches, which speeds up network configuration.
Key Features
- Independent precision bridge source per channel
- Channels do not interfere with one another
- DIP-switch setting of address and baud rate
- Stable, interference-resistant multi-channel acquisition
- Standard output 2~200 times/second, compatible with common indicators
- Compact design for straightforward integration
Applications
Multi-platform and multi-hopper weighing systems, tank batteries and test rigs that gather several load cells onto one serial network.
| Technical Parameters | |||
|---|---|---|---|
| Model | MK-DWT810-EN10 | Voltage | 24V ~ 36V DC |
| Current | 200~250mA | A/D analog/digital | Independent 24-bit, up to 10-channel input |
| Sensor Excitation Voltage | 5VDC | Maximum range of sensor | ±30mV |
| Internal Sampling Frequency | Up to 400 Hz | Static Output Rate | 2~200 times/second |
| Industrial Ethernet interface | Two Ethernet interfaces, 10/100BASE-T/TX, Auto MDI-X | Bluetooth | Supports Bluetooth V4.0 / V4.1 BLE protocol |
| Serial Modbus Address | 1~31 | Modbus Serial Baud Rate | 9600 19200 38400 115200bps |
| Digital Filter | Divided into dynamic digital filter and static filter | Operating Temperature Range | -20°C ~ +70°C |
| Storage Temperature Range | -60°C ~ +90°C | Module size | 180x108x77mm (L x W x H) |

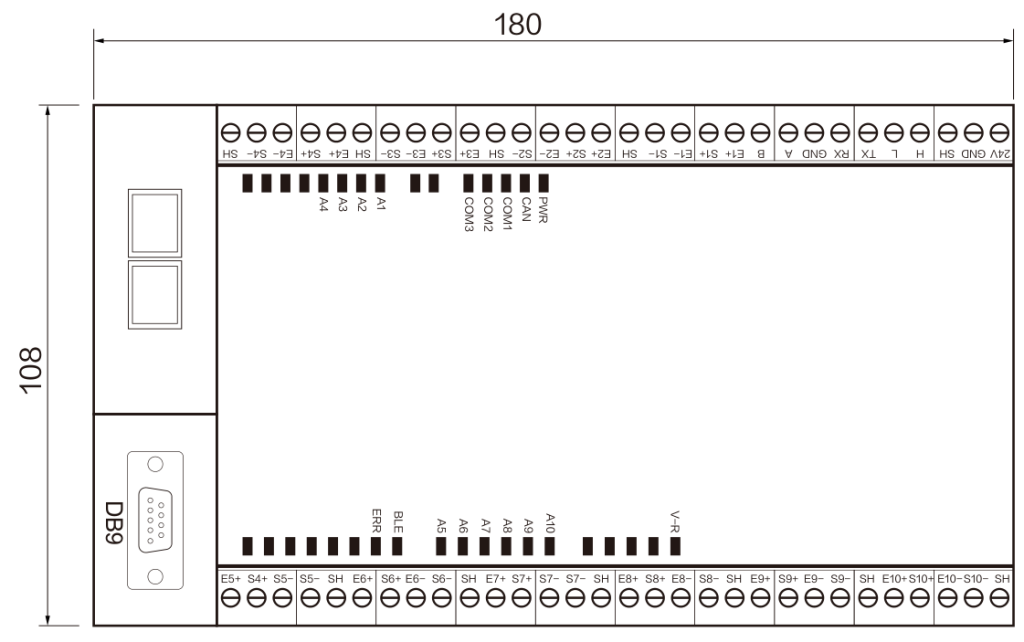

Dimension Drawing
Dimensions
| Model | MK-DWT810-EN10 | Voltage | 24V ~ 36V DC |
|---|---|---|---|
| Current | 200~250mA | A/D / A/D | 24 , 10 |
| Sensor Excitation Voltage | 5VDC | Maximum range of sensor | ±30mV |
| Internal Sampling Frequency | 400Hz | Static Output Rate | 2~200 / |
| Industrial Ethernet interface | Auto MDI-X | Bluetooth | V4.0 / V4.1 BLE |
| Serial Modbus Address | 1~31 | Modbus Serial Baud Rate | 9600,19200,38400,115200bps |
| Digital Filter | Operating Temperature Range | -20℃ ~ +70℃ | |
| Storage Temperature Range | -60℃ ~ +90℃ | Module size | 180x108x77mm( x x ) |
Frequently Asked Questions
What are the typical applications of the MK-DWT810-EN10?
Multi-platform and multi-hopper weighing systems, tank batteries and test rigs that gather several load cells onto one serial network.
Which indicator, transmitter or system works with the MK-DWT810-EN10?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
