Overview

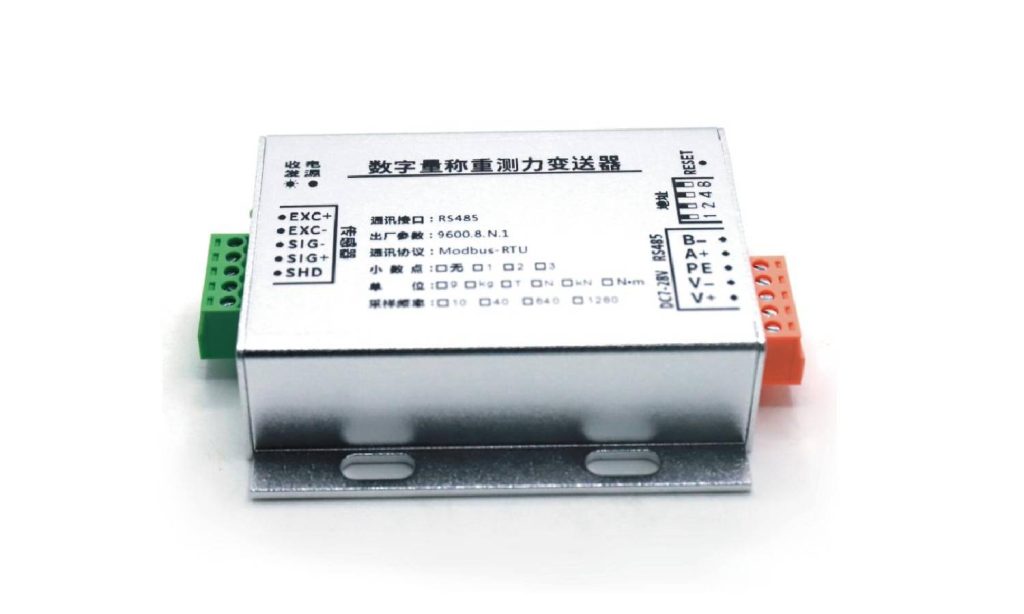

The MK-DBSQ-02 is a weighing transmitter module that conditions the signal from a strain-gauge load cell and reports the weight over a standard Modbus RTU network. It is designed to pair with any Wheatstone-bridge resistive strain-gauge sensor, which simplifies retrofits and spare-part standardisation.
Key Features
- Standard Modbus RTU digital output
- Works with any Wheatstone strain-gauge sensor
- Sealed to Optocoupler isolation, power isolation, surge protection (not on basic version) for reliable operation in harsh environments
- Compact design for straightforward integration
Applications
Suits integrators adding analogue load cells to Modbus-based PLC, SCADA or gateway weighing systems in batching, hopper and platform duties.
| Technical Parameters | |||
|---|---|---|---|
| Power supply | DC: 7~28V | Power | <1W |
| Operating current | Varies with the number of external sensors and supply voltage; drive capacity 500mA | Isolation protection | Optocoupler isolation, power isolation, surge protection (not on basic version) |
| Applicable environment | Temperature -40°C~85°C, humidity 0%~95%, non-condensing | Protection class | IP65 |
| Types of sensors available | Suitable for all Wheatstone bridge resistive strain gauge sensors | Sensor excitation voltage | 5VDC ±3% |
| Sensor driving capability | 8 pcs 350Ω sensors | Input signal range | 0− ±30mV |
| Stable resolution | 1/500000 | Sampling rate | -20°C ~ +70°C |
| Sampling mode | Sig Delta AD | Communication mode | RS485 |
| Communication Protocol | Standard Modbus RTU protocol, supports function codes 03, 06, 16 (0X10) | Baud rate | 2400 4800 9600 19200 28800 38400 57600 115200 256000 500000 |

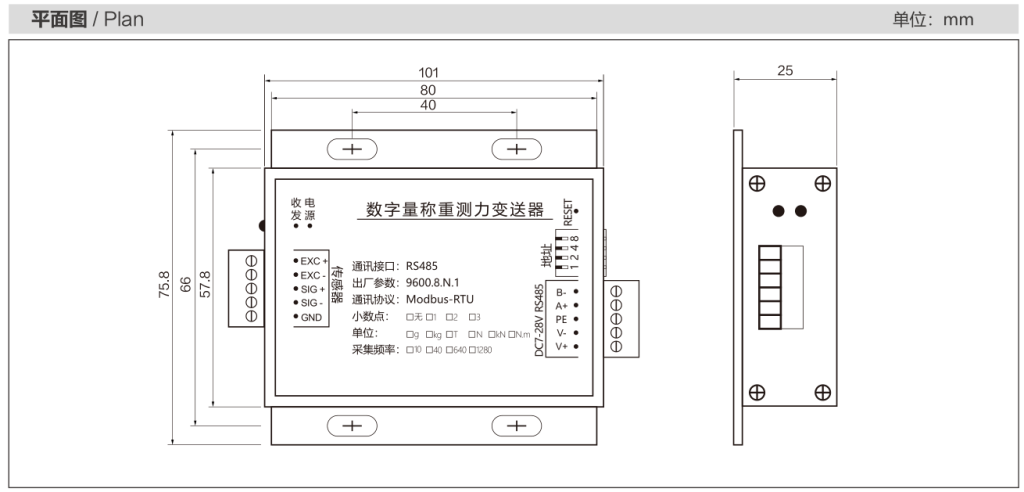

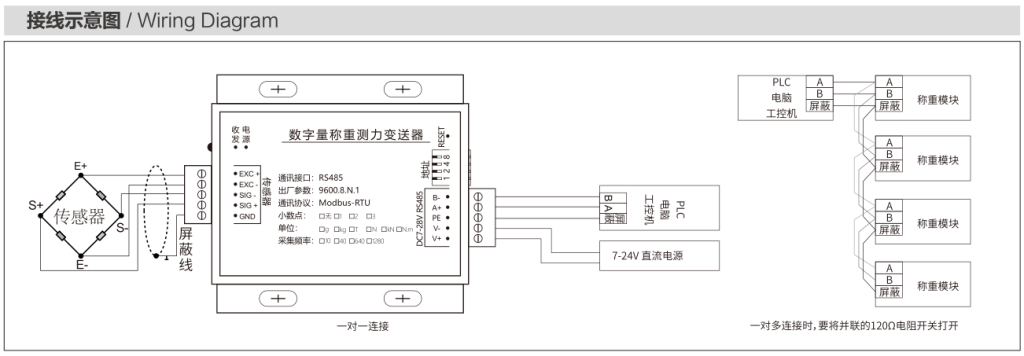

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK-DBSQ-02?
Suits integrators adding analogue load cells to Modbus-based PLC, SCADA or gateway weighing systems in batching, hopper and platform duties.
Which indicator, transmitter or system works with the MK-DBSQ-02?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
