Overview

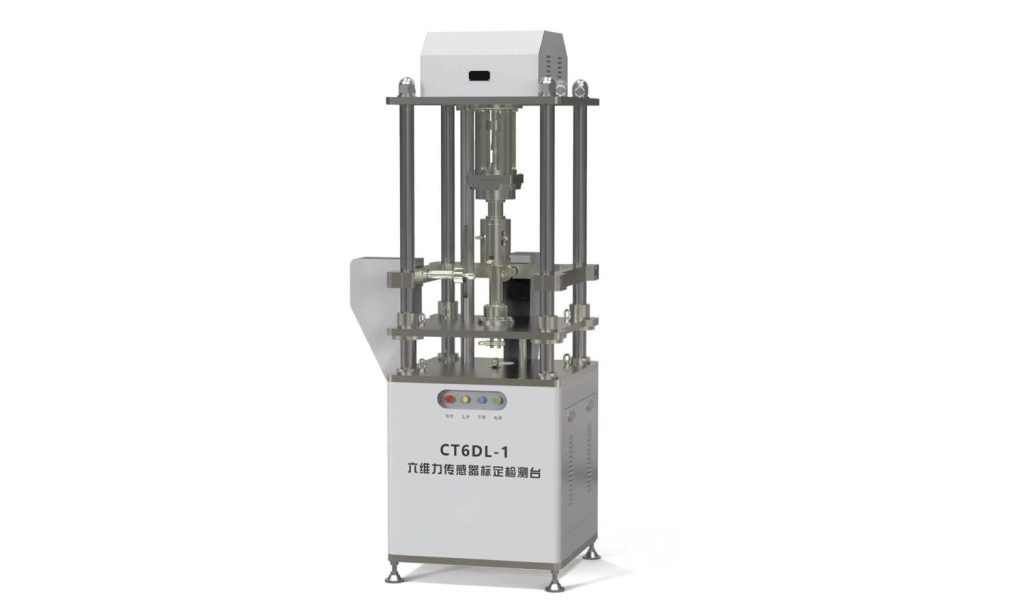

The MK-CT6DL-1 is a six-axis force-sensor calibration and test bench. Servo electric cylinders with precision force sensors provide high-accuracy closed-loop control with load-hold precision better than 1/10000, while a servo torsion mechanism with a torque sensor reaches the same accuracy in torque. Multi-channel servo loading applies Fx, Fy, Fz, Mx, My and Mz together to eliminate inter-axis coupling errors.
Key Features
- Six-axis combined servo loading (Fx, Fy, Fz, Mx, My, Mz)
- Load and torque hold precision better than 1/10000
- Precision vertical control of the loading moment arm
- Removes inter-axis coupling for accurate calibration
- High accuracy (Fx, Fy, Fz load accuracy ≤0.1%F.S; Mz load accuracy ≤0.1%F.S) for precise measurement
- Compact design for straightforward integration
Applications
Intended for the calibration and verification of six-axis force/torque sensors; the control software displays all six channels and real-time loading curves for intuitive, automated calibration.
| Technical Parameters | |||
|---|---|---|---|
| Maximum load force | Fx: 600N, Fy: 600N, Fz: 3000N (uses a customized-capacity 0.05%FS force sensor as the standard force sensor) | Max applied torque | Mx: 80N·m, My: 80N·m, Mz: 80N·m (Mz uses a custom-range 0.05%F.S torque sensor as the standard torque sensor; Mx and My use Fy and Fx standard force loading actuators with loading force arms to form standard torque sources) |
| Loading accuracy | Fx, Fy, Fz load accuracy ≤0.1%F.S; Mz load accuracy ≤0.1%F.S | Lifting stroke | 150mm |
| Displacement sensor accuracy | ≤0.1%F.S | Operating voltage | AC220V |
| Overall dimensions | 1023x1023x2038mm | Weight | about 875kg |
Frequently Asked Questions
What are the typical applications of the MK-CT6DL-1?
Intended for the calibration and verification of six-axis force/torque sensors; the control software displays all six channels and real-time loading curves for intuitive, automated calibration.
Which indicator, transmitter or system works with the MK-CT6DL-1?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
