Overview

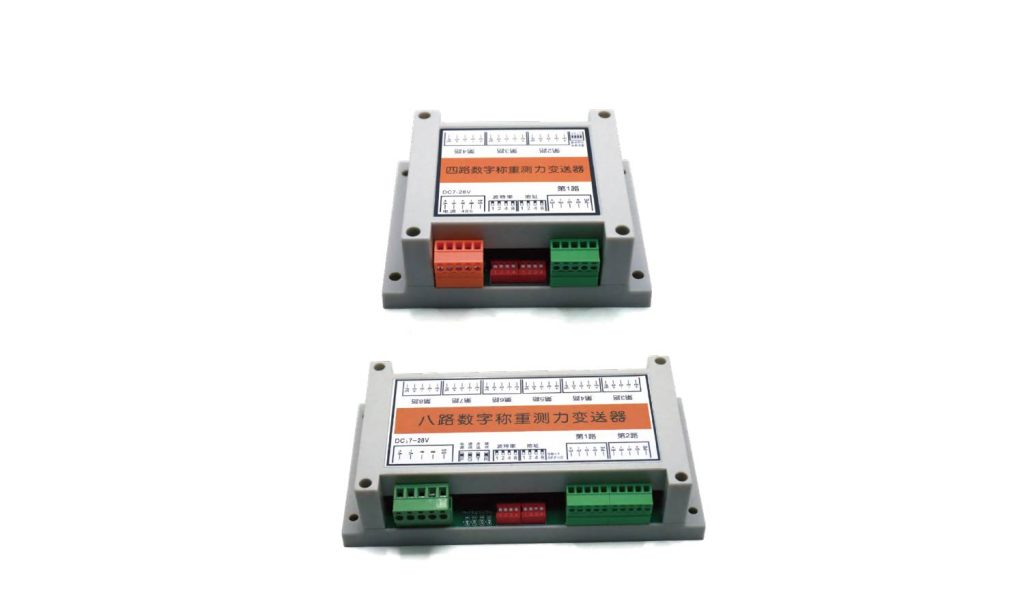

The MK-BSQ-4CH is a weighing signal module that adapts load-cell outputs to a standard Modbus RTU interface, supporting the common read and write function codes used on plant networks. It is compatible with all Wheatstone-bridge strain-gauge sensors, so existing scale designs gain digital integration without changes to the mechanical build.
Key Features
- Standard Modbus RTU protocol
- Compatible with all strain-gauge load cells
- Sealed to Optocoupler isolation, power isolation, surge protection (not on basic version) for reliable operation in harsh environments
- Compact design for straightforward integration
Applications
Provides Modbus RTU integration of strain-gauge weighing signals into industrial control and monitoring systems.
| Technical Parameters | |||
|---|---|---|---|
| Power supply | DC: 10~28V | Power | <2W |
| Operating current | Varies with the number of external sensors and supply voltage; drive capacity 500mA | Isolation protection | Optocoupler isolation, power isolation, surge protection (not on basic version) |
| Applicable environment | Temperature -40°C~85°C, humidity 0%~95%, non-condensing | Protection class | IP65 |
| Types of sensors available | Suitable for all Wheatstone bridge resistive strain gauge sensors | Sensor excitation voltage | 5VDC ±3% |
| Sensor driving capability | 4 x 350Ω load cells on a single channel | Channel Serial Baud rates | 2~4 channels / 6~8 channels |
| Input signal range | 0– ±30mV | Stable resolution | 1/500000 |
| Sampling rate | -20°C ~ +70°C | Sampling mode | Sig Delta AD |
| Communication mode | RS485 | Communication Protocol | Standard Modbus RTU protocol, supports function codes 03, 06, 16 (0X10) |

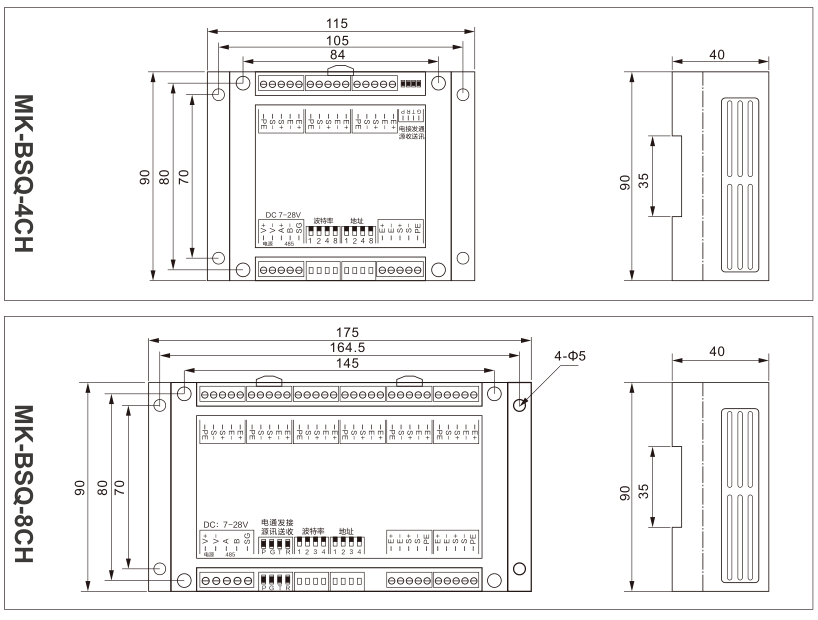

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK-BSQ-4CH?
Provides Modbus RTU integration of strain-gauge weighing signals into industrial control and monitoring systems.
Which indicator, transmitter or system works with the MK-BSQ-4CH?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
