Overview

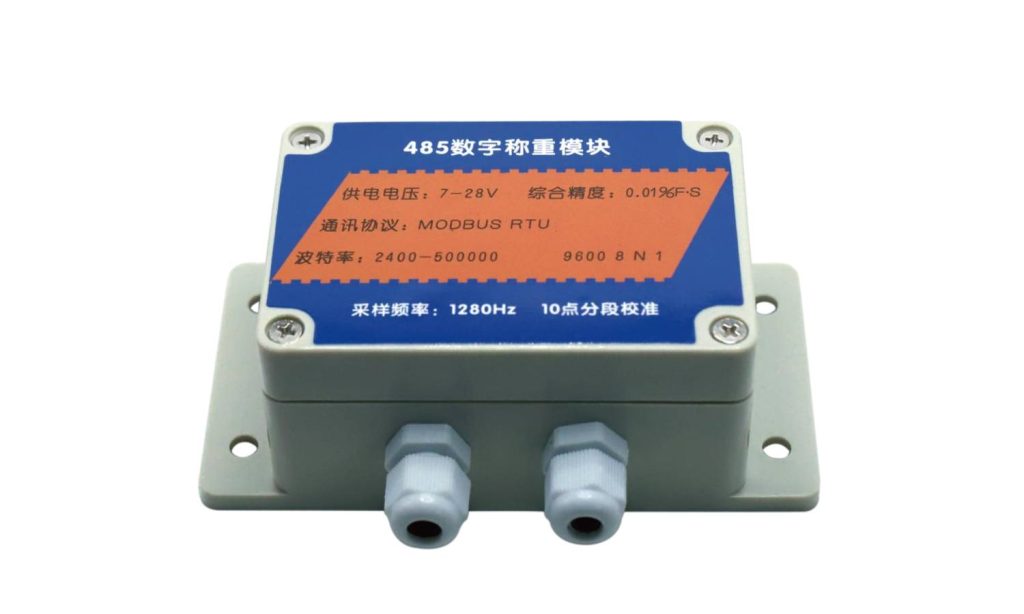

The MK-BSQ-1CH is a digital weighing module that communicates over RS485 using standard Modbus RTU, supporting read and write function codes for straightforward system integration. It connects to Wheatstone-bridge strain-gauge sensors and converts their signal into digital weight data.
Key Features
- Standard Modbus RTU over RS485
- Works with Wheatstone strain-gauge sensors
- Supports 03, 06 and 16 function codes
- Sealed to Optocoupler isolation, power isolation, surge protection (not on basic version) for reliable operation in harsh environments
- Compact design for straightforward integration
Applications
Used to add digital readout and serial communication to load-cell-based industrial weighing systems.
| Technical Parameters | |||
|---|---|---|---|
| Power supply | DC: 7~28V | Power | <1W |
| Operating current | Varies with the number of external sensors and supply voltage; drive capacity 500mA | Isolation protection | Optocoupler isolation, power isolation, surge protection (not on basic version) |
| Applicable environment | Temperature -40°C~85°C, humidity 0%~95%, non-condensing | Protection class | IP65 |
| Types of sensors available | Suitable for all Wheatstone bridge strain gauge sensors | Sensor excitation voltage | 5VDC ±3% |
| Sensor driving capability | 8 pcs 350Ω sensors | Input signal range | 0– ±30mV |
| Stable resolution | 1/500000 | Sampling rate | -20°C ~ +70°C |
| Sampling mode | Sig Delta AD | Communication mode | RS485 |
| Communication Protocol | Standard Modbus RTU protocol, supports function codes 03, 06, 16 (0X10) | Baud rate | 2400 4800 9600 19200 28800 38400 57600 115200 256000 500000 |

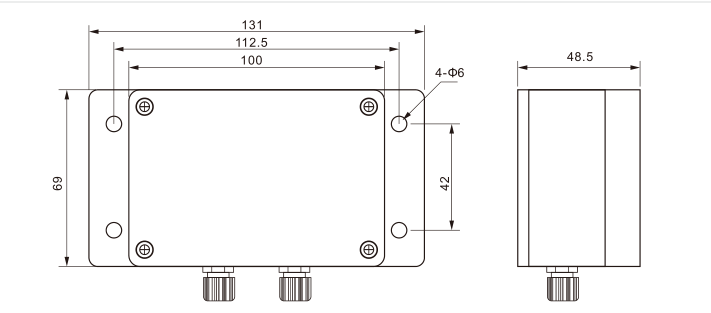

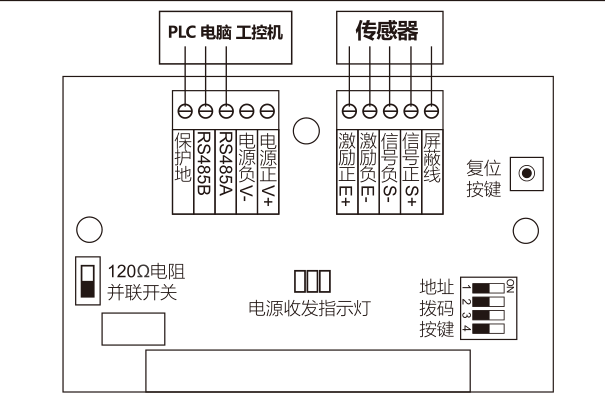

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK-BSQ-1CH?
Used to add digital readout and serial communication to load-cell-based industrial weighing systems.
Which indicator, transmitter or system works with the MK-BSQ-1CH?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
