Overview

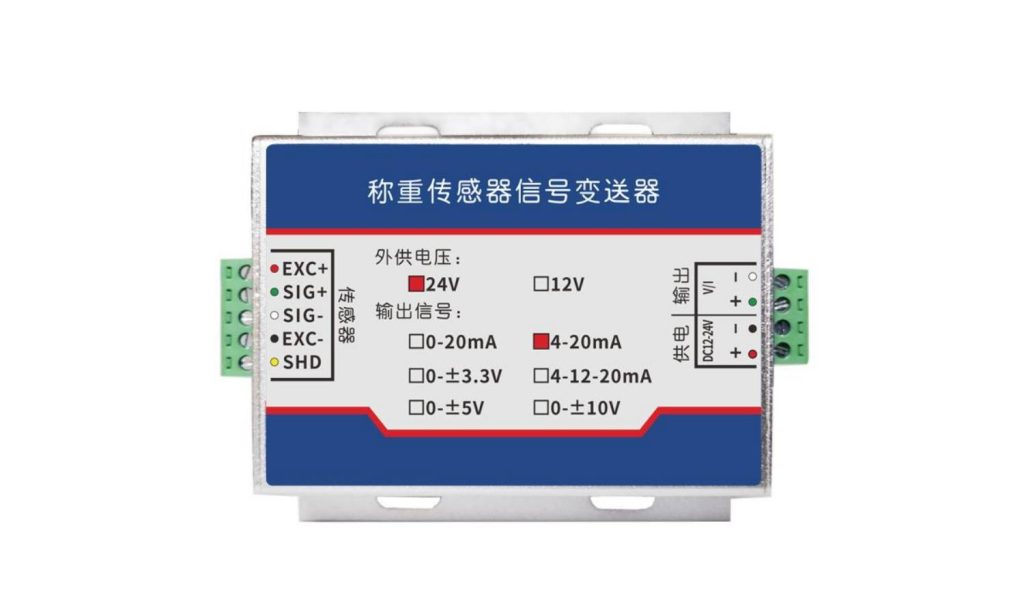

The MK-BSQ-01 is a compact weighing and signal-conditioning module with a durable aluminium-alloy housing and strong interference immunity. High-precision op-amp circuitry gives accurate, stable output for a range of strain-gauge sensors.
Key Features
- Durable aluminium-alloy housing
- High-precision, stable amplifier circuit
- Good interference immunity
- High accuracy (Better than 0.03%F.S) for precise measurement
- Standard output 0 ±10V 0 ±5V 0 ±3.3V 0 20mA 4 20mA 4 12 20mA, compatible with common indicators
- Compact design for straightforward integration
Applications
Pairs with weight, tension-and-compression force and torque strain-gauge sensors across weighing and force-measurement systems.
| Technical Parameters | |||
|---|---|---|---|
| Product Name | Load cell signal transmitter | Model | MK-BSQ-02 |
| Working voltage | DC: 12~24V | Input Load | 1-8 bridge sensors with 350Ω impedance |
| Accuracy | Better than 0.03%F.S | Output signal | 0 ±10V 0 ±5V 0 ±3.3V 0 20mA 4 20mA 4 12 20mA |
| Operating temperature range | -20°C ~ +80°C | Operating Ambient Humidity | 10%RH-90%RH (non-condensing) |
| Wiring methods | Note: The wiring above is a 4-wire connection. For a 3-wire connection, short the power negative and the signal negative. If the output signal polarity is opposite to the sensor force direction, swap sensor signal positive (SIG+) and sensor signal negative (SIG-). | ||

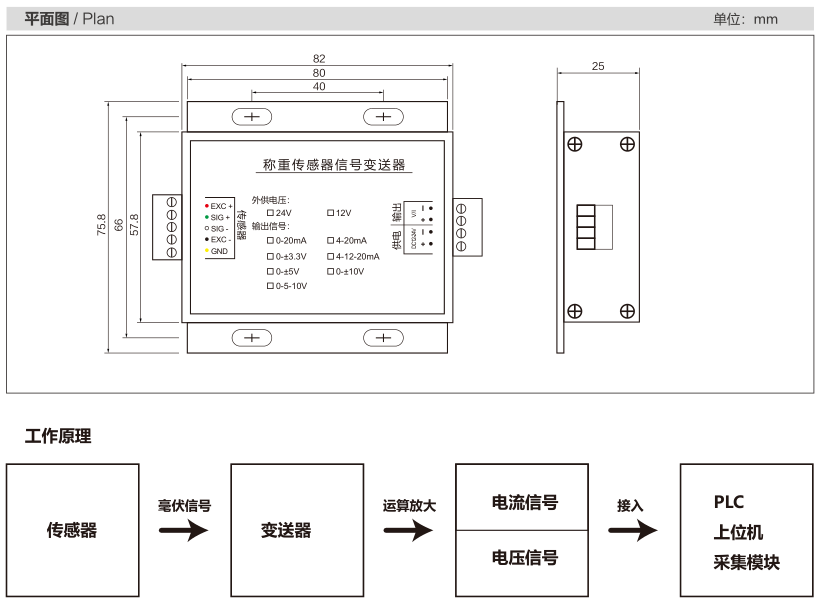

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK-BSQ-01?
Pairs with weight, tension-and-compression force and torque strain-gauge sensors across weighing and force-measurement systems.
Which indicator, transmitter or system works with the MK-BSQ-01?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
