Overview

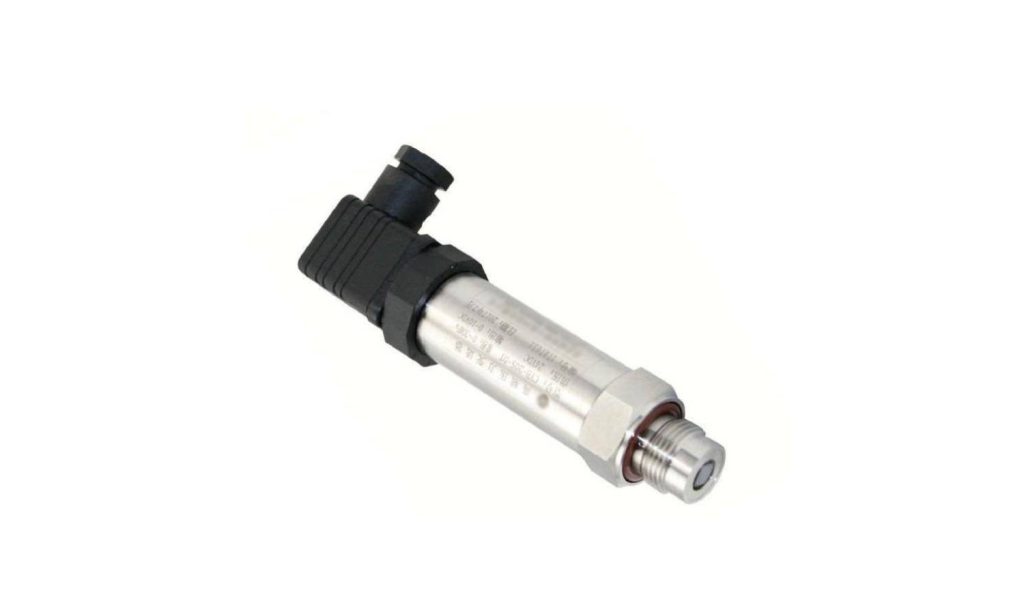

The MK-20S-DT is a dynamic pressure transmitter built for fast-changing and transient pressure measurement, offering kilohertz-class bandwidth and microsecond response with 200% overload capacity. It provides selectable voltage outputs and stainless-steel wetted parts for durable service in harsh process environments.
Key Features
- High accuracy (J1: ±0.2%F.SJ2: ±0.5%F.S) for precise measurement
- Media compatible with silicon and stainless steel elastic element for durability and corrosion resistance
- Standard output S1:1–5V S2:0–5VS3:1–10V S4:0–10V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used for process and machinery monitoring in chemical, metallurgical and related industrial measurement and control applications.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | -0.1MPa ~ 0MPa – 1MPa – 100MPa (optional) | Pressure type | G: gauge pressure, J: absolute pressure, F: negative pressure |
| Inherent frequency | 20-1000KHz (1MPa-100MPa, higher frequency for larger range) | Accuracy | J1: ±0.2%F.SJ2: ±0.5%F.S |
| Transmitter bandwidth | 0~20KHz / 0–100KHZ | Output signal | S1:1–5V S2:0–5VS3:1–10V S4:0–10V |
| Rise time | 10μS / 1μS | Excitation voltage | D1: 24VDC, D2: ±15VDC, D3: customized |
| Overload capacity | 200%F.S | Measured medium | Gas, liquid and vapor |
| Temperature drift | ±0.05%F.S/°C | Medium temp. | W1: -40~85°C, W2: -10~125°C (customized) |
| Insulation resistance | ≥500M Ω 250VDC | Mechanical interface | A1: M20x1.5, A2: M14x1.5, A3: G1/2, A4: Custom |
| Process material | Media compatible with silicon and stainless steel | Electrical connection | Y1: Direct lead wires; Y2: Aviation connector; Y3: Hirschmann connector |
| Explosion-proof type | i: Intrinsically safe type (ExiallCT6) | ||

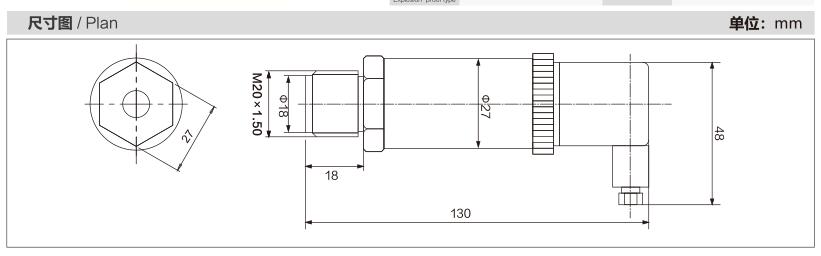

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK-20S-DT?
Used for process and machinery monitoring in chemical, metallurgical and related industrial measurement and control applications.
Which indicator, transmitter or system works with the MK-20S-DT?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
