Overview

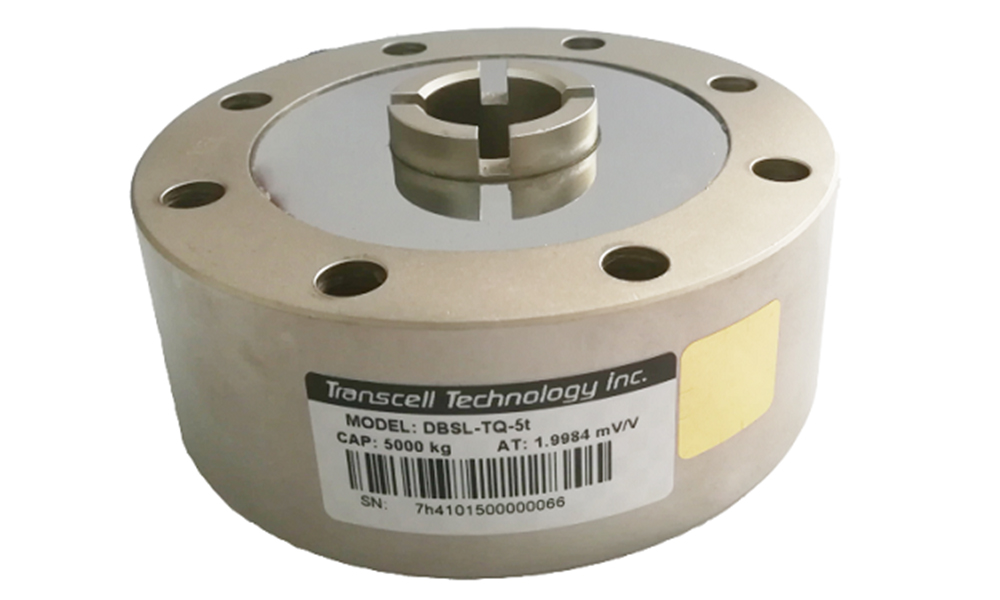

The DBSL-TQ is a spoke-type load cell built for high-accuracy force measurement in demanding industrial settings. Its spoke elastic element gives strong resistance to off-centre loads and excellent stability, with combined accuracy to 0.02% and repeatability better than 0.01%. Machined from high-strength alloy steel with a nickel-plated, corrosion-resistant finish, it spans a wide range of rated loads and offers multiple output and signal-conditioning options for easy integration.
Key Features
- Spoke construction with high off-centre-load resistance
- Combined accuracy up to 0.02%, repeatability better than 0.01%
- Low-profile body for simpler, quicker installation
- High-strength alloy steel with nickel-plated anti-corrosion finish
- Capacities from a few hundred kilograms to tens of tonnes
- Standard output 3.0mV/V±0.25%, compatible with common indicators
Applications
Well matched to material-testing machines, truck and axle-weighing scales, and large hopper or silo scales for industrial weighing, mechanical loading and dynamic force monitoring.
| Technical Parameters | |||
|---|---|---|---|
| Rated output | 3.0mV/V±0.25% | Sensitivity temperature drift | ≤0.002% of applied output/°C |
| Zero balance | ±1% of rated output | Zero temperature drift | ≤0.002% of rated output/°C |
| Creep | ±0.03% of rated output | Usable temperature range | -10°C to +70°C |
| Non-linearity | ±0.03% of rated output | Temperature compensation range | -10°C to +40°C |
| Hysteresis | ±0.03% of rated output | Safe load | 150% |
| Repeatability | ±0.03% of rated output | Input impedance | 775±20Ω/387±20Ω(≤20t) |
| Output impedance | 700±5Ω/350±5Ω(≤20t) | Insulation resistance | ≥5000MΩ(50V DC) |
| Recommended excitation voltage | 10V DC/AC | Maximum excitation voltage | 15V DC/AC |
| Wire length | 6m/10m | Connection method | Red: E+ (input +), Black: E- (input -), Green: S+ (output +), White: S- (output -) |
Frequently Asked Questions
What are the typical applications of the DBSL-TQ?
Well matched to material-testing machines, truck and axle-weighing scales, and large hopper or silo scales for industrial weighing, mechanical loading and dynamic force monitoring.
Which indicator, transmitter or system works with the DBSL-TQ?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
