Overview

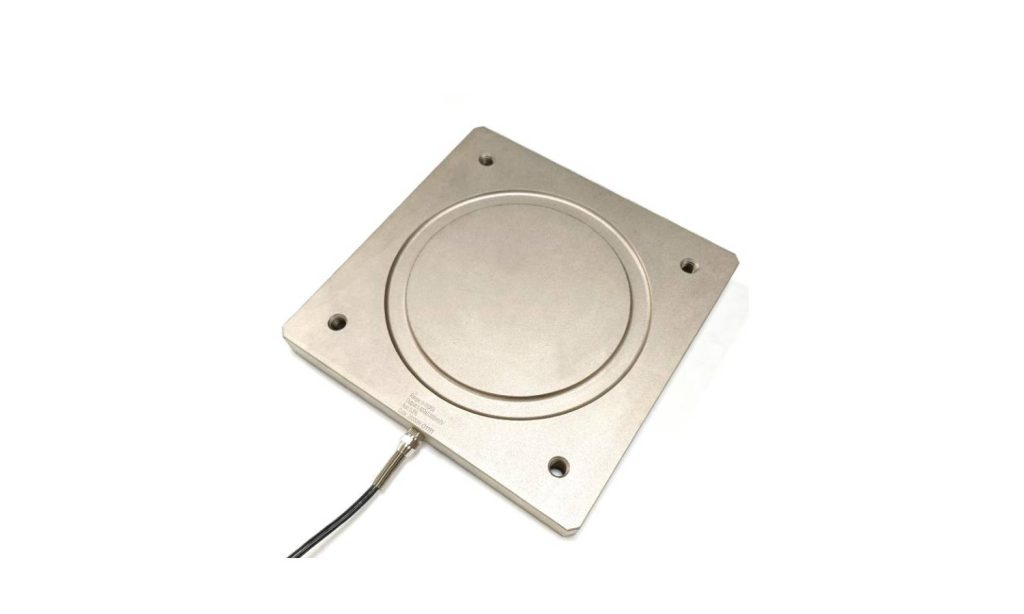

The MK1800 pedal force sensor measures the force applied to a pedal with fast response and high precision. Its thin, lightweight construction makes installation easy, and it accurately captures pedal intention and force magnitude from 0 to 150 kN.
Key Features
- Thin and light body is quick to mount on pedals or levers
- Fast response captures rapid pedal movements faithfully
- High precision for accurate force-intention analysis
- Robust design withstands repeated dynamic loading
Applications
Automotive brake pedal testing, electric bicycle pedal-assist control, fitness equipment load measurement and ergonomics studies.
Technical Parameters
| Rated capacity | 0~150kN | Output sensitivity | 1.6 ± 0.5%mV/V |
|---|---|---|---|
| Temperature compensated range | -10°C~40°C | Nonlinearity | ≤0.5%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ≤0.5%F.S |
| Temperature Effect on Output | ≤0.5%F.S/10°C | Repeatability | ≤0.5%F.S |
| Temperature Effect on Zero | ≤0.5%F.S/10°C | Creep (30 min) | ≤0.05%F.S/30min |
| Zero balance | ±2%F.S | Recommended excitation voltage | 5~10VDC |
| Insulation resistance | ≥5000M Ω | Safe overload | 120%F.S |
| Material | Alloy steel | Cable connection | Wire colors: red = excitation + (E+), black = excitation – (E-), green = signal + (S+), white = signal – (S-) |
Frequently Asked Questions
Can the MK1800 record dynamic pedal force curves?
Yes. Its fast response makes it suitable for capturing complete force-versus-time pedal curves used in brake testing and pedal-assist tuning.

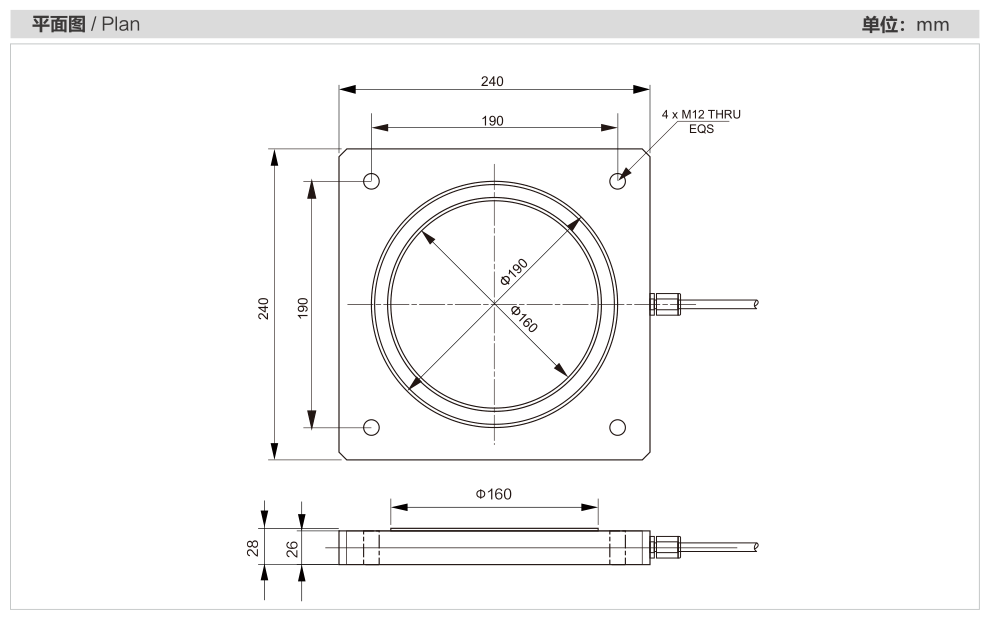

How is the sensor mounted?
The thin housing mounts between the pedal and its linkage using standard fixtures; a custom mounting adapter can be supplied on request.
