Overview

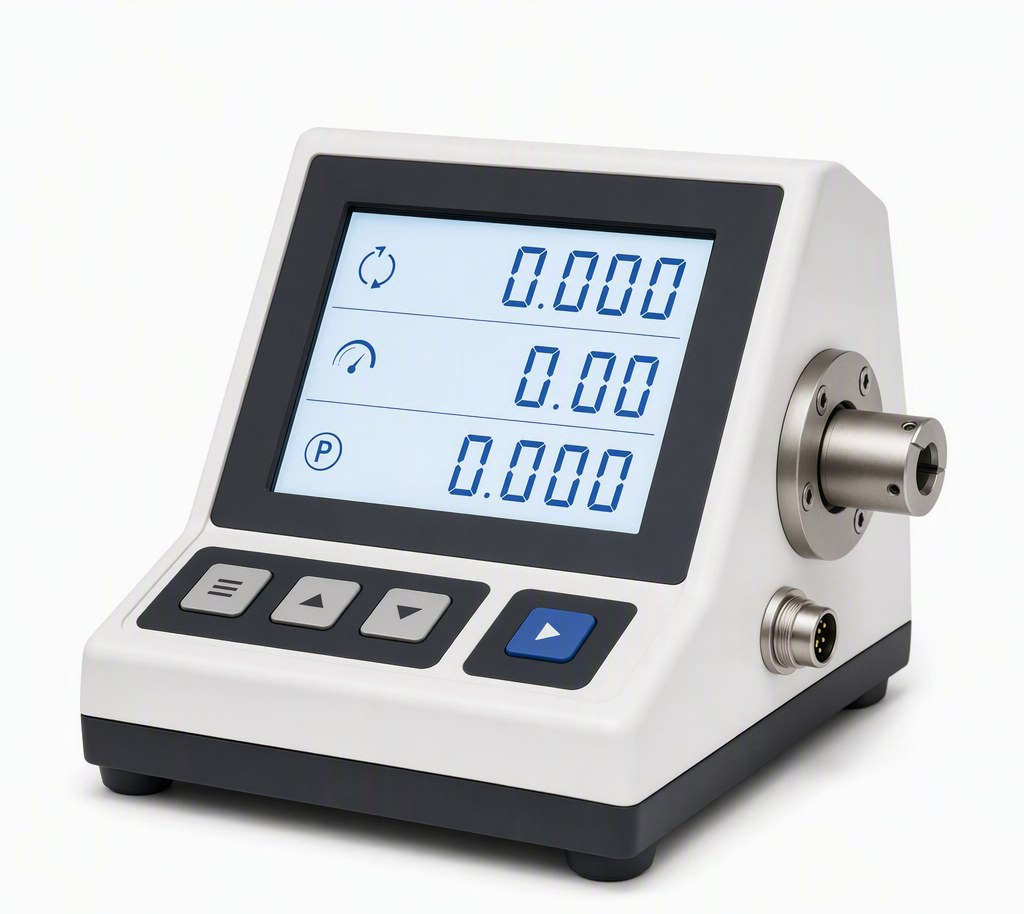

The MK-TP001 is a high-resolution torque, speed and power meter for test benches and laboratory measurement. Supporting ±15 VDC / 24 VDC supply, it displays torque, rotational speed and mechanical power simultaneously and integrates easily with PLC and data-acquisition systems.
Key Features
- Measurement resolution up to 1/1,000,000 with 25 readings per second
- Simultaneous torque, speed and power display with programmable decimal point
- Accepts a wide range of pulse and frequency signal inputs
- Two isolated 4-20 mA analog transmitter outputs
- RS232 / RS485 communication interfaces for easy system integration
Applications
Motor and drivetrain test benches, reducer and transmission efficiency testing, electric tool inspection and laboratory torque verification.

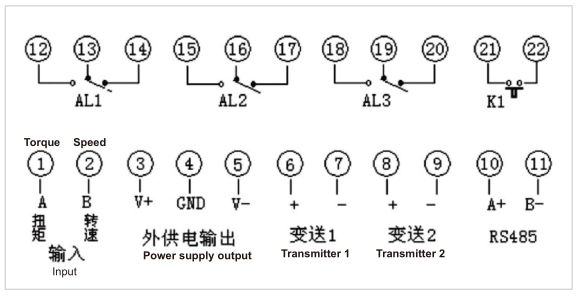

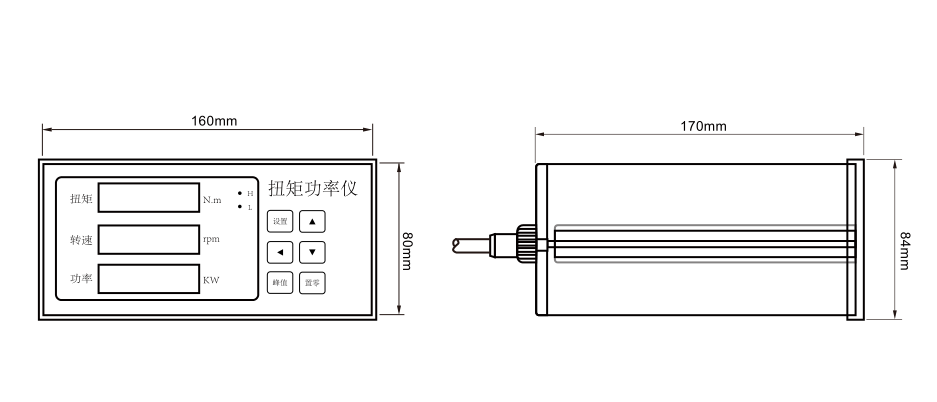

Technical Parameters
| Instrument name | Torque, speed & power meter MK-TP001 | Power supply | ±15 VDC or 24 VDC (either one), load capacity > 300 mA |
|---|---|---|---|
| Measurement resolution | Internal resolution up to 1/1,000,000; display resolution 1/120,000 (5-digit LED) | Measurement speed | 25 readings per second |
| Indication range | Torque: -99999~99999 N·m (absolute display 0~99999, programmable decimal); speed: 0~99999; power: 0~99999 | Pulse input signal | Accepts NPN, PNP and open-collector sensor signals, proximity switches and rotary encoders |
| Measurement frequency | Speed pulse input 1 Hz ~ 20 kHz; torque pulse input 5 kHz ~ 15 kHz, extendable to 1 Hz ~ 60 kHz | Transmission output | 2 channels 4-20 mA DC output; resolution 1/4000; error < ±0.2% F.S; load ≤ 600 Ω |
| Serial port communication | RS232 or RS485 (one of two; RS485 supplied by default) |
Frequently Asked Questions
What signals does the MK-TP001 accept as input?
It works with a wide range of pulse signals from torque speed sensors, so most standard magnetic or photoelectric pickups can be connected directly.
Can the transmitter output be scaled to my measuring range?
Yes. The two 4-20 mA outputs are fully scalable to your torque and speed ranges through the front-panel settings, and the RS485 port supports remote configuration.
